Omron Automation and Safety E5DC-RX2DSM-000

Name: E5DC-RX2DSM-000
Brand: Omron Automation and Safety
SKU: E5DC-RX2DSM-000
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: E5DC-RX2DSM-000

Manufacturer:: Omron Automation and Safety

Category:: Process, Temperature

Package:

Datasheet:: E5DC-RX2DSM-000.pdf

Description:: CONTROL TEMP/PROCESS REL OUT 24V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

E5DC-RX2DSM-000 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: E5DC

Packaging:: Box

Product Status:: Active

Type:: Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)

Input Range:: -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC

Output Type:: Relay (3)

Control Method:: On/Off, Proportional (PID)

Communications:: -

Number of Characters Per Row:: 4, 4

Display Type:: LCD - Dual Color Characters, Backlight

Display Characters - Height:: 0.334" (8.50mm), 0.314" (8.00mm)

Voltage - Supply:: 24VAC/DC

Panel Cutout Dimensions:: -

Mounting Type:: DIN Rail

Termination Style:: Screw Terminal

Ingress Protection:: IP20

Features:: -

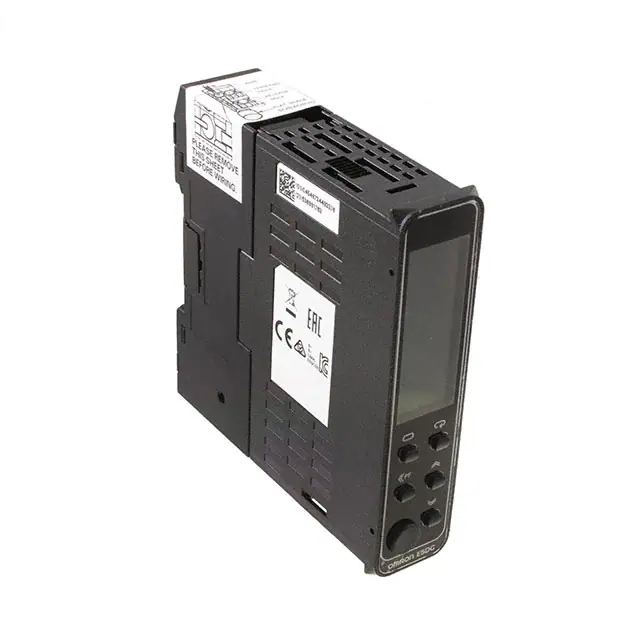

Part Number	E5DC-RX2DSM-000	E5DC-RX2ASM-000	E5DC-QX2DBM-002	E5DC-QX0DSM-015	E5DC-QX2ASM-002
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	E5DC	E5DC	E5DC	E5DC	E5DC
Packaging	Box	Box	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Type	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type	Relay (3)	Relay (3)	Relay (2), Voltage (External SSR)	Voltage (External SSR)	Relay (2), Voltage (External SSR)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Communications	-	-	RS-485 (CompoWay/F, Modbus)	RS-485 (CompoWay/F, Modbus)	RS-485 (CompoWay/F, Modbus)
Number of Characters Per Row	4, 4	4, 4	4, 4	4, 4	4, 4
Display Type	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight
Display Characters - Height	0.334" (8.50mm), 0.314" (8.00mm)	0.334" (8.50mm), 0.314" (8.00mm)	0.334" (8.50mm), 0.314" (8.00mm)	0.334" (8.50mm), 0.314" (8.00mm)	0.334" (8.50mm), 0.314" (8.00mm)
Voltage - Supply	24VAC/DC	100 ~ 240VAC	24VAC/DC	24VAC/DC	100 ~ 240VAC
Panel Cutout Dimensions	-	-	-	-	-
Mounting Type	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Termination Style	Screw Terminal	Screw Terminal	Spring Terminal	Screw Terminal	Screw Terminal
Ingress Protection	IP20	IP20	IP20	IP20	IP20
Features	-	-	-	-	-
