Omron Automation and Safety E5GC-QX1A6M-000

Name: E5GC-QX1A6M-000
Brand: Omron Automation and Safety
SKU: E5GC-QX1A6M-000
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: E5GC-QX1A6M-000

Manufacturer:: Omron Automation and Safety

Category:: Process, Temperature

Package:

Datasheet:: E5GC-QX1A6M-000.pdf

Description:: CONTROL TEMP/PROC RELAY/VOLT OUT

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

E5GC-QX1A6M-000 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: E5GC

Packaging:: Bulk

Product Status:: Active

Type:: Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)

Input Range:: -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC

Output Type:: Relay, Voltage (External SSR)

Control Method:: On/Off, Proportional (PID)

Communications:: -

Number of Characters Per Row:: 4, 4

Display Type:: LCD - Dual Color Characters, Backlight

Display Characters - Height:: 0.413" (10.50mm), 0.197" (5.00mm)

Voltage - Supply:: 100 ~ 240VAC

Panel Cutout Dimensions:: Rectangular - 45.00mm x 22.20mm

Mounting Type:: Panel Mount

Termination Style:: Screw Terminal

Ingress Protection:: IP66 - Dust Tight, Water Resistant

Features:: -

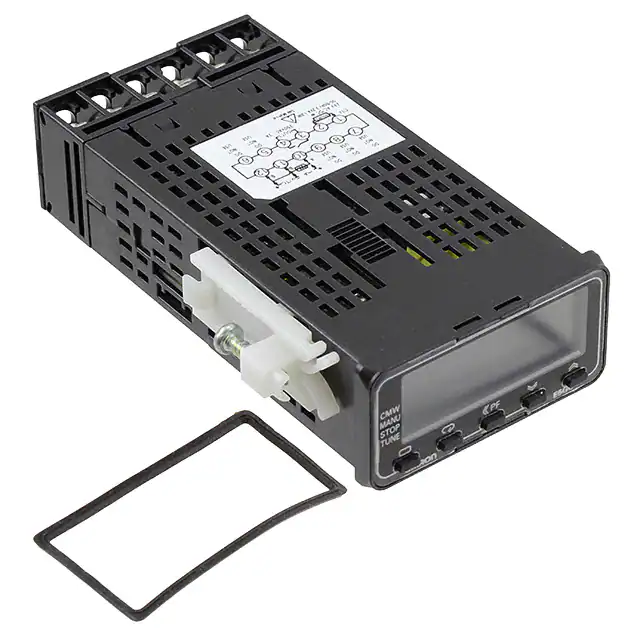

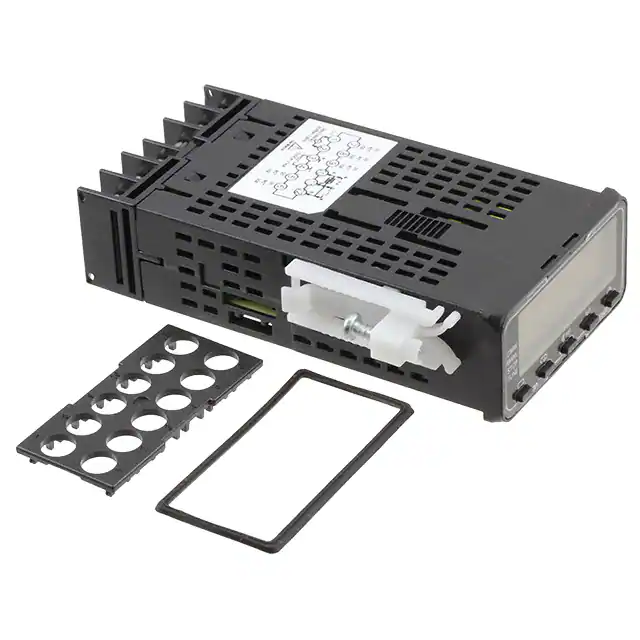

Part Number	E5GC-QX1A6M-000	E5GC-QX1D6M-000	E5GC-RX1A6M-000	E5GC-RX0D6M-000	E5GC-QX0A6M-000
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	E5GC	E5GC	E5GC	E5GC	E5GC
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Type	Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type	Relay, Voltage (External SSR)	Relay, Voltage (External SSR)	Relay (2)	Relay	Voltage (External SSR)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Communications	-	-	-	-	-
Number of Characters Per Row	4, 4	4, 4	4, 4	4, 4	4, 4
Display Type	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Dual Color Characters, Backlight
Display Characters - Height	0.413" (10.50mm), 0.197" (5.00mm)	0.413" (10.50mm), 0.197" (5.00mm)	0.413" (10.50mm), 0.197" (5.00mm)	0.413" (10.50mm), 0.197" (5.00mm)	0.413" (10.50mm), 0.197" (5.00mm)
Voltage - Supply	100 ~ 240VAC	24VAC/DC	100 ~ 240VAC	24VAC/DC	100 ~ 240VAC
Panel Cutout Dimensions	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Ingress Protection	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant
Features	-	-	-	-	-
