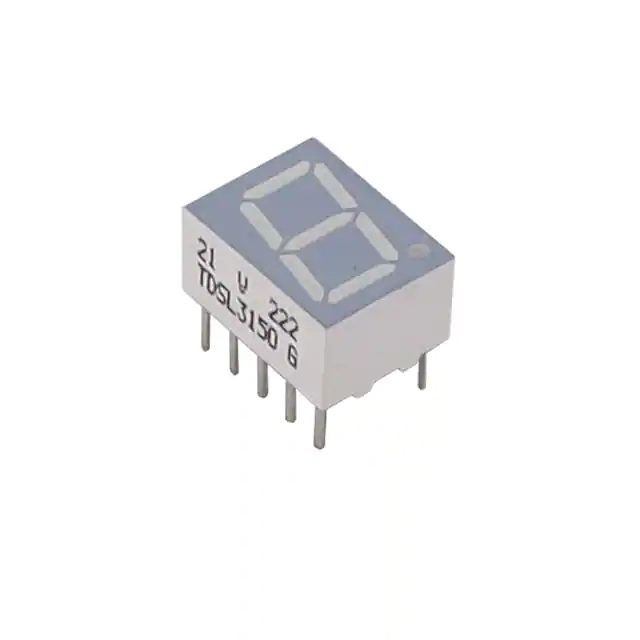

Vishay Semiconductor Opto Division TDSL3150-G
- Part No.:
- TDSL3150-G
- Manufacturer:
- Vishay Semiconductor Opto Division
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.300", 7.62mm)
- Datasheet:
-
TDSL3150-G.pdf
- Description:
- DISPLAY 7SEG 0.39" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TDSL3150-G Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- TDSL31.0
- Package/Case:
- 10-DIP (0.300", 7.62mm)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm)
- Digit/Alpha Size:
- 0.39" (10.00mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.8V
- Current - Test:
- 2mA
- Millicandela Rating:
- 0.90mcd
- Wavelength - Peak:
- 635nm
- Power Dissipation (Max):
- 320mW
| Image |  |
 |
| Part Number | TDSL3150 | TDSL3150-G |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Series | TDSL31.0 | TDSL31.0 |
| Package/Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) |
| Packaging | Bulk | Bulk |
| Product Status | Active | Obsolete |
| Display Format | - | - |
| Number of Characters | 1 | 1 |
| Size / Dimension | 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm) | 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode |
| Color | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.8V |
| Current - Test | 2mA | 2mA |
| Millicandela Rating | 0.26mcd | 0.90mcd |
| Wavelength - Peak | 635nm | 635nm |
| Power Dissipation (Max) | 320mW | 320mW |
