Vishay Semiconductor Opto Division TDSG1150
- Part No.:
- TDSG1150
- Manufacturer:
- Vishay Semiconductor Opto Division
- Category:
- LED Character and Numeric
- Package:
- -
- Datasheet:
-
TDSG1150.pdf
- Description:
- DISPLAY 7-SEG 0.28" SGL GREEN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TDSG1150 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- TDS.11
- Package/Case:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm)
- Digit/Alpha Size:
- 0.28" (7.00mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Green
- Voltage - Forward (Vf) (Typ):
- 2.4V
- Current - Test:
- 20mA
- Millicandela Rating:
- 6mcd
- Wavelength - Peak:
- 565nm
- Power Dissipation (Max):
- 400mW
| Image |  |
 |

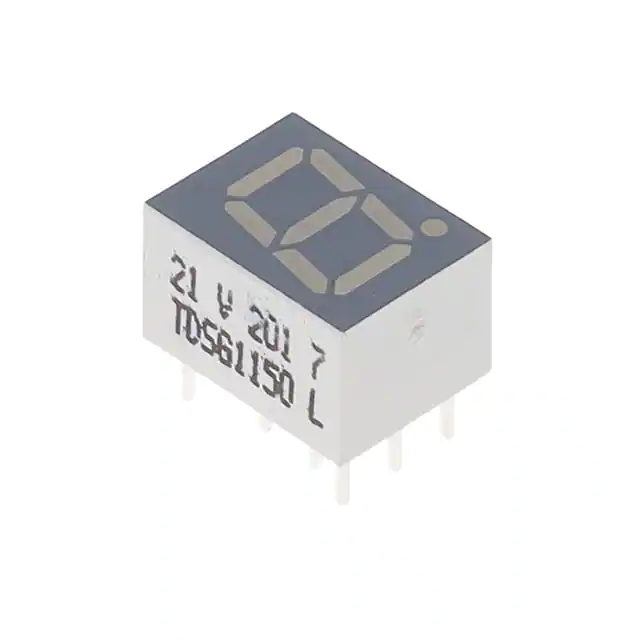

| Part Number | TDSG1150 | TDSG1150-LM |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Series | TDS.11 | TDS.11 |
| Package/Case | - | - |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Display Format | - | - |
| Number of Characters | 1 | 1 |
| Size / Dimension | 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm) | 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm) |
| Digit/Alpha Size | 0.28" (7.00mm) | 0.28" (7.00mm) |
| Display Type | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode |
| Color | Green | Green |
| Voltage - Forward (Vf) (Typ) | 2.4V | 2.4V |
| Current - Test | 20mA | 20mA |
| Millicandela Rating | 6mcd | 9mcd |
| Wavelength - Peak | 565nm | 565nm |
| Power Dissipation (Max) | 400mW | 400mW |
