Toshiba Semiconductor and Storage TB62213AHQ
- Part No.:
- TB62213AHQ
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Motor Drivers, Controllers
- Package:
- 25-SIP Formed Leads
- Description:
- IC MOTOR DRIVER BIPLR 25V 25HZIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TB62213AHQ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- -
- Package/Case:
- 25-SIP Formed Leads
- Packaging:
- Tray
- Product Status:
- Obsolete
- Motor Type - Stepper:
- Bipolar
- Motor Type - AC, DC:
- -
- Function:
- Driver - Fully Integrated, Control and Power Stage
- Output Configuration:
- Half Bridge (4)
- Interface:
- Parallel
- Technology:
- Power MOSFET
- Step Resolution:
- 1, 1/2, 1/4
- Applications:
- General Purpose
- Current - Output:
- 2.4A
- Voltage - Supply:
- 4.75V ~ 5.25V
- Voltage - Load:
- 10V ~ 38V
- Operating Temperature:
- -20°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 25-HZIP

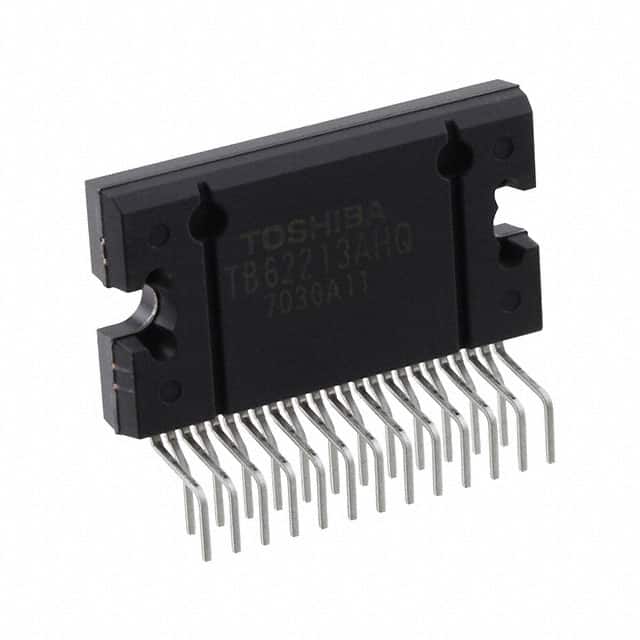

| Image |  |
.jpg) |
| Part Number | TB62213AHQ,8 | TB62213AHQ |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | - | - |
| Package/Case | 25-SIP Formed Leads | 25-SIP Formed Leads |
| Packaging | Tube | Tray |
| Product Status | Active | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar |
| Motor Type - AC, DC | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel |
| Technology | Power MOSFET | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4 | 1, 1/2, 1/4 |
| Applications | General Purpose | General Purpose |
| Current - Output | 2.4A | 2.4A |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V | 10V ~ 38V |
| Operating Temperature | -20°C ~ 150°C (TJ) | -20°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 25-HZIP | 25-HZIP |
