Bourns Inc. SRP2512-1R0M
- Part No.:
- SRP2512-1R0M
- Manufacturer:
- Bourns Inc.
- Category:
- Fixed Inductors
- Package:
- 1008 (2520 Metric)
- Datasheet:
-
SRP2512-1R0M.pdf
- Description:
- FIXED IND 1UH 3.4A 49 MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SRP2512-1R0M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- SRP2512
- Package/Case:
- 1008 (2520 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Drum Core, Wirewound
- Material - Core:
- Iron Powder
- Inductance:
- 1 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 3.4 A
- Current - Saturation (Isat):
- 3.4A
- Shielding:
- Shielded
- DC Resistance (DCR):
- 49mOhm Max
- Q @ Freq:
- 39 @ 1MHz
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 1 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 1008
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.047" (1.20mm)
| Image |  |
 |
 |
|
|

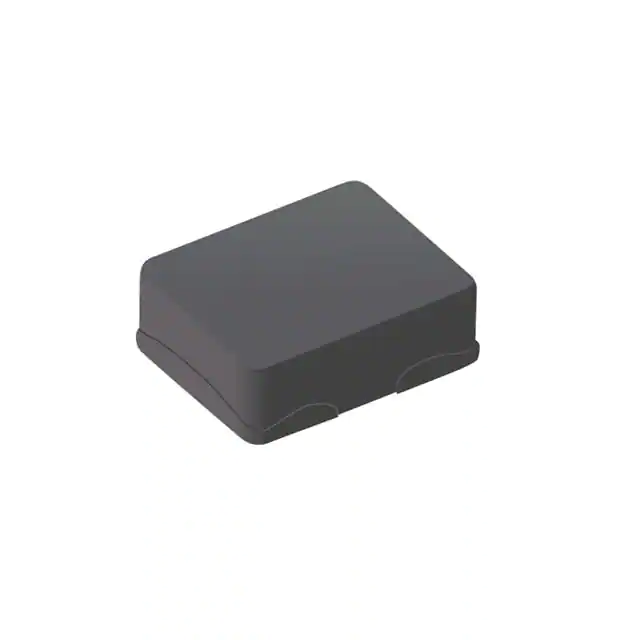

| Part Number | SRP2512-1R0M | SRP2512A-4R7M | SRP2512TMA-2R2M | SRP2512TMA-R47M | SRP2512-2R2M |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | SRP2512 | SRP2512A | SRP2512TMA | SRP2512TMA | SRP2512 |
| Package/Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - | - | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder | Metal | Metal | Iron Powder |
| Inductance | 1 µH | 4.7 µH | 2.2 µH | 470 nH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.4 A | 1.55 A | 3.1 A | 6.2 A | 2.1 A |
| Current - Saturation (Isat) | 3.4A | 1.9A | 3.4A | 6.2A | 3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 49mOhm Max | 235mOhm Max | 79.2mOhm Max | 18mOhm Max | 104mOhm Max |
| Q @ Freq | 39 @ 1MHz | 39 @ 1MHz | 15 @ 1MHz | 15 @ 1MHz | 39 @ 1MHz |
| Frequency - Self Resonant | - | 37MHz | 45MHz | 112MHz | - |
| Ratings | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | Flat Wire | Flat Wire | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
