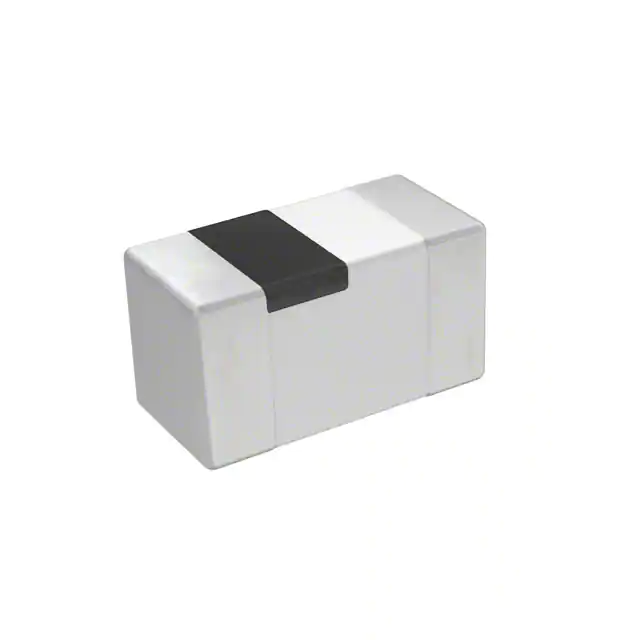

TDK Corporation MLG1005S2N2BT000
- Part No.:
- MLG1005S2N2BT000
- Manufacturer:
- TDK Corporation
- Category:
- Fixed Inductors
- Package:
- 0402 (1005 Metric)
- Datasheet:
-
MLG1005S2N2BT000.pdf
- Description:
- FIXED IND 2.2NH 900MA 150MOHM SM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MLG1005S2N2BT000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- MLG
- Package/Case:
- 0402 (1005 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Multilayer
- Material - Core:
- Ceramic, Non-Magnetic
- Inductance:
- 2.2 nH
- Tolerance:
- ±0.1nH
- Current Rating (Amps):
- 900 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 150mOhm Max
- Q @ Freq:
- 7 @ 100MHz
- Frequency - Self Resonant:
- 7GHz
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Inductance Frequency - Test:
- 100 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0402 (1005 Metric)
- Size / Dimension:
- 0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):
- 0.022" (0.55mm)
| Image |  |
| Part Number | MLG1005S2N2BT000 |
| Manufacturer | TDK Corporation |
| Series | MLG |
| Package/Case | 0402 (1005 Metric) |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 2.2 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 7 @ 100MHz |
| Frequency - Self Resonant | 7GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
