Murata Electronics LQP03TN3N3B02D
- Part No.:
- LQP03TN3N3B02D
- Manufacturer:
- Murata Electronics
- Category:
- Fixed Inductors
- Package:
- 0201 (0603 Metric)
- Datasheet:
-
LQP03TN3N3B02D.pdf
- Description:
- FIXED IND 3.3NH 450MA 250MOHM SM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LQP03TN3N3B02D Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Murata Electronics
- Series:
- LQP03
- Package/Case:
- 0201 (0603 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Thick Film
- Material - Core:
- Non-Magnetic
- Inductance:
- 3.3 nH
- Tolerance:
- ±0.1nH
- Current Rating (Amps):
- 450 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 250mOhm Max
- Q @ Freq:
- 14 @ 500MHz
- Frequency - Self Resonant:
- 8GHz
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Inductance Frequency - Test:
- 500 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0201 (0603 Metric)
- Size / Dimension:
- 0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):
- 0.013" (0.33mm)

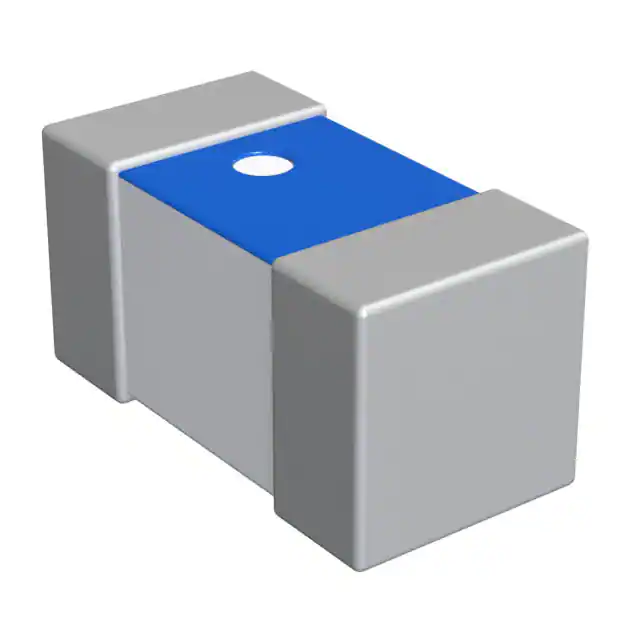

| Image | .jpg) |
| Part Number | LQP03TN3N3B02D |
| Manufacturer | Murata Electronics |
| Series | LQP03 |
| Package/Case | 0201 (0603 Metric) |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 3.3 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
