SparkFun Electronics SPX-17751
- Part No.:
- SPX-17751
- Manufacturer:
- SparkFun Electronics
- Category:
- RF Antennas
- Package:
- Datasheet:
-
SPX-17751.pdf
- Description:
- GNSS MULTI-BAND L1/L2 SURVEYING
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SPX-17751 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SparkFun Electronics
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.238GHz, 1.585GHz
- Frequency Range:
- 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz
- Antenna Type:
- Dome
- Number of Bands:
- 2
- VSWR:
- 1.5, 2
- Return Loss:
- -
- Gain:
- 5dBi
- Power - Max:
- -
- Features:
- LNA
- Termination:
- TNC
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Panel Mount
- Height (Max):
- 2.185" (55.50mm)
- Applications:
- Beidou, GLONASS, GNSS, GPS
| Image |  |
 |
 |
 |

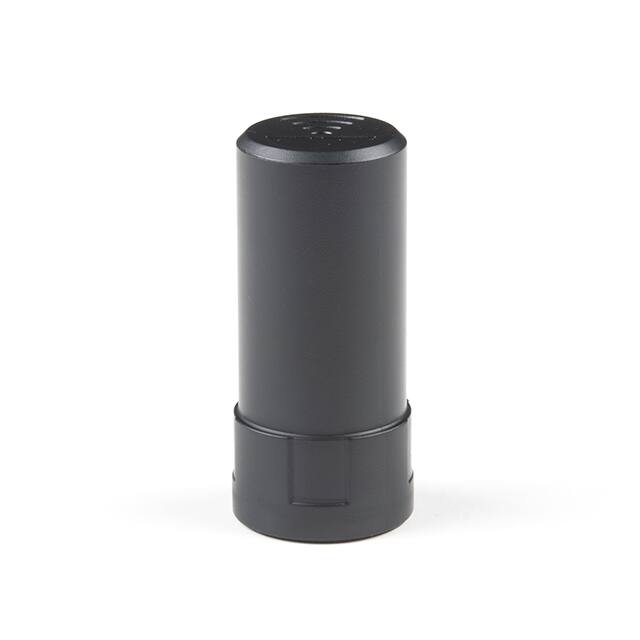

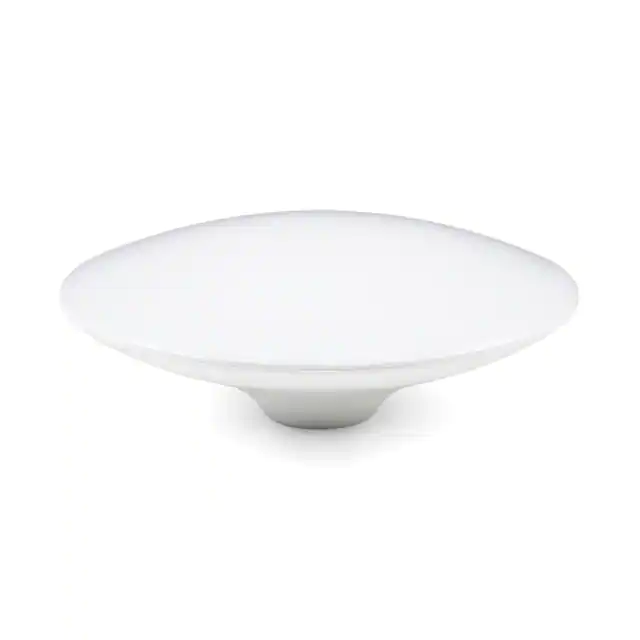

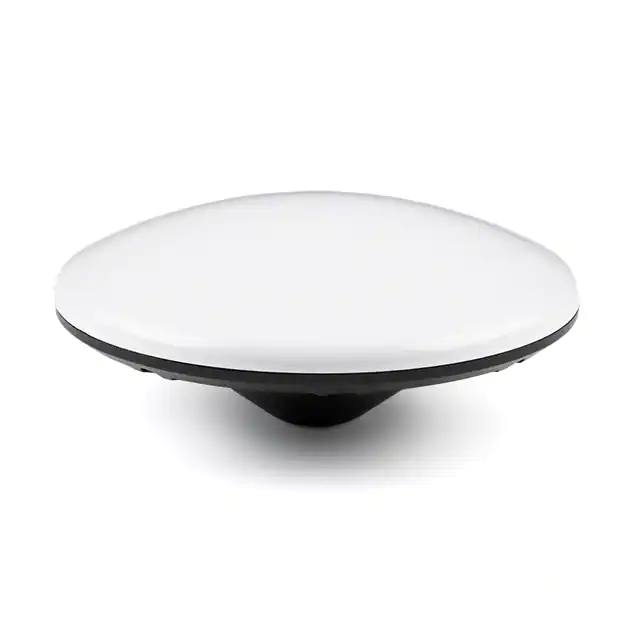

| Part Number | SPX-17383 | SPX-17382 | SPX-17587 | SPX-17751 |
| Manufacturer | SparkFun Electronics | SparkFun Electronics | SparkFun Electronics | SparkFun Electronics |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Obsolete | Obsolete | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | - | - | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | - | - | 1.238GHz, 1.585GHz | 1.238GHz, 1.585GHz |
| Frequency Range | - | - | 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz | 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz |
| Antenna Type | Helical | Dome | Dome | Dome |
| Number of Bands | - | - | 2 | 2 |
| VSWR | 1.5 | 2 | 1.5, 2 | 1.5, 2 |
| Return Loss | - | - | - | - |
| Gain | 3dBi | 5.5dBi | 5dBi | 5dBi |
| Power - Max | - | - | - | - |
| Features | LNA | LNA | LNA | LNA |
| Termination | SMA | RP-TNC Male | TNC | TNC |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Connector Mount | Panel Mount | Panel Mount | Panel Mount |
| Height (Max) | 2.307" (58.60mm) | 2.618" (66.50mm) | 2.185" (55.50mm) | 2.185" (55.50mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, GLONASS, GNSS, GPS |
