Skyworks Solutions Inc. SMP1304-005LF
- Part No.:
- SMP1304-005LF
- Manufacturer:
- Skyworks Solutions Inc.
- Category:
- RF Diodes
- Package:
- TO-236-3, SC-59, SOT-23-3
- Description:
- RF DIODE PIN 200V 250MW SOT23-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SMP1304-005LF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Skyworks Solutions Inc.
- Series:
- SMP1304
- Package/Case:
- TO-236-3, SC-59, SOT-23-3
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- PIN - 1 Pair Series Connection
- Voltage - Peak Reverse (Max):
- 200V
- Current - Max:
- -
- Capacitance @ Vr, F:
- 0.3pF @ 30V, 1MHz
- Resistance @ If, F:
- 2Ohm @ 100mA, 100MHz
- Power Dissipation (Max):
- 250 mW
- Operating Temperature:
- -65°C ~ 150°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- SOT-23-3
| Image |  |
 |
|
 |
 |

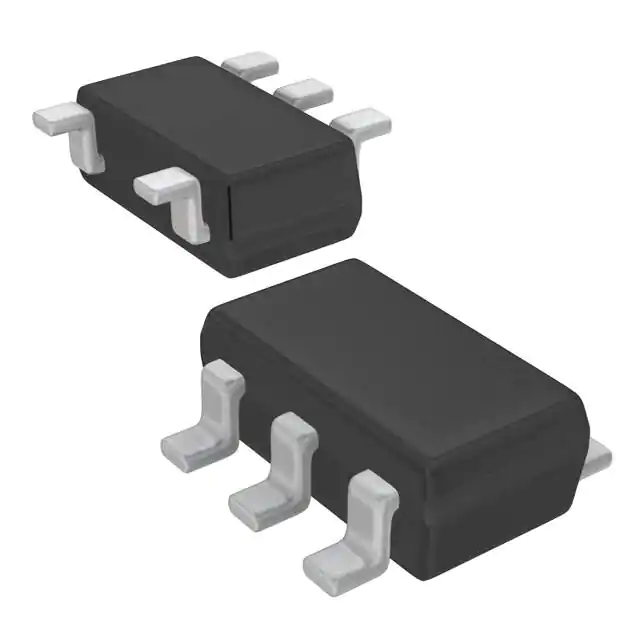

| Part Number | SMP1304-005LF | SMP1304-079LF | SMP1304-006LF | SMP1304-027LF | SMP1304-019LF |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Series | SMP1304 | SMP1304 | SMP1304 | SMP1304 | - |
| Package/Case | TO-236-3, SC-59, SOT-23-3 | SC-79, SOD-523 | TO-236-3, SC-59, SOT-23-3 | SOT-5 | TO-253-4, TO-253AA |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| Diode Type | PIN - 1 Pair Series Connection | PIN - Single | PIN - 1 Pair Series Connection | PIN - 2 Pair CA + CC | PIN - PI Element |
| Voltage - Peak Reverse (Max) | 200V | 200V | 200V | 200V | 200V |
| Current - Max | - | - | 10 mA | - | - |
| Capacitance @ Vr, F | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz |
| Resistance @ If, F | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Operating Temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | SOT-23-3 | SC-79 | SOT-23-3 | SOT-5 | SOT-143 |
