Skyworks Solutions Inc. SMP1345-040LF
- Part No.:
- SMP1345-040LF
- Manufacturer:
- Skyworks Solutions Inc.
- Category:
- RF Diodes
- Package:
- 0402 (1005 Metric)
- Description:
- RF DIODE PIN 50V 750MW 0402
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SMP1345-040LF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Skyworks Solutions Inc.
- Series:
- -
- Package/Case:
- 0402 (1005 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- PIN - Single
- Voltage - Peak Reverse (Max):
- 50V
- Current - Max:
- 150 mA
- Capacitance @ Vr, F:
- 0.2pF @ 5V, 1MHz
- Resistance @ If, F:
- 2Ohm @ 10mA, 100MHz
- Power Dissipation (Max):
- 750 mW
- Operating Temperature:
- -65°C ~ 150°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 0402
| Image |  |
 |
 |
 |
 |

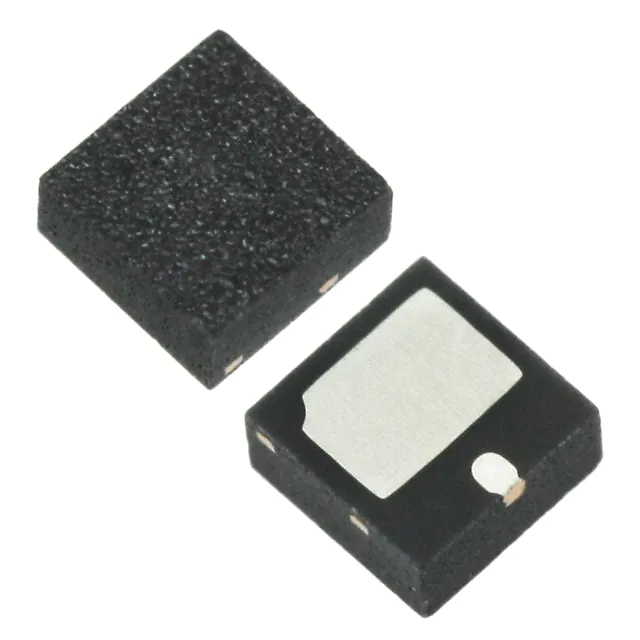

| Part Number | SMP1345-040LF | SMP1345-079LF | SMP1345-087LF | SMP1345-004LF | SMP1345-075LF |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Series | - | - | - | SMP1345 | - |
| Package/Case | 0402 (1005 Metric) | SC-79, SOD-523 | 2-VSFN Exposed Pad | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Obsolete |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - 1 Pair Common Cathode | PIN - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max) | 50V | 50V | - | 50V | 50V |
| Current - Max | 150 mA | - | 200 mA | - | - |
| Capacitance @ Vr, F | 0.2pF @ 5V, 1MHz | 0.2pF @ 5V, 1MHz | 0.2pF @ 5V, 1MHz | - | 0.2pF @ 5V, 1MHz |
| Resistance @ If, F | 2Ohm @ 10mA, 100MHz | 2Ohm @ 10mA, 100MHz | 2Ohm @ 10mA, 100MHz | 2Ohm @ 10mA, 100MHz | 2Ohm @ 10mA, 100MHz |
| Power Dissipation (Max) | 750 mW | 250 mW | 500 mW | 250 mW | 250 mW |
| Operating Temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 0402 | SC-79 | 2-QFN (2x2) | SOT-23-3 | SC-70-3 |
