Littelfuse Inc. SMD030F-2
- Part No.:
- SMD030F-2
- Manufacturer:
- Littelfuse Inc.
- Category:
- PTC Resettable Fuses
- Package:
- 2-SMD
- Datasheet:
-
SMD030F-2.pdf
- Description:
- PTC RESET FUSE 60V 300MA 2SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SMD030F-2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- 2-SMD
- Series:
- PolySwitch®, SMD
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Polymeric
- Voltage - Max:
- 60V
- Current - Hold (Ih) (Max):
- 300 mA
- Current - Trip (It):
- 600 mA
- Current - Max:
- 10 A
- Time to Trip:
- 3 s
- Resistance - Initial (Ri) (Min):
- 1.2 Ohms
- Resistance - Post Trip (R1) (Max):
- 4.8 Ohms
- Resistance - 25°C (Typ):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.290" L x 0.202" W (7.36mm x 5.12mm)
- Height - Seated (Max):
- -
- Thickness (Max):
- 0.125" (3.18mm)
- Lead Spacing:
- -

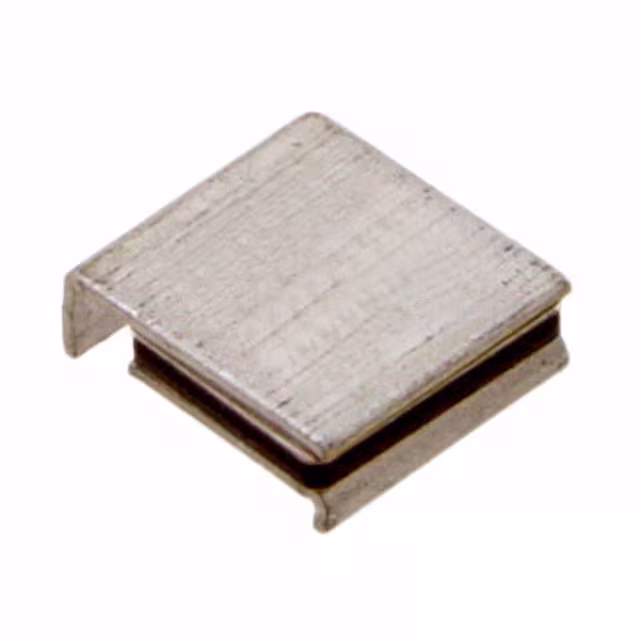

| Image |  |
 |
| Part Number | SMD030F-2 | SMD030F-2018-2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | 2-SMD | 2-SMD |
| Series | PolySwitch®, SMD | PolySwitch®, SMD |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Current - Trip (It) | 600 mA | 800 mA |
| Current - Max | 10 A | 20 A |
| Time to Trip | 3 s | 1.5 s |
| Resistance - Initial (Ri) (Min) | 1.2 Ohms | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 4.8 Ohms | 2.3 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - |
| Qualification | - | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.200" L x 0.180" W (5.08mm x 4.58mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.125" (3.18mm) | 0.070" (1.78mm) |
| Lead Spacing | - | - |
