Amgis, LLC SH50C-3.0-150
- Part No.:
- SH50C-3.0-150
- Manufacturer:
- Amgis, LLC
- Category:
- Fixed Inductors
- Package:
- Radial, Vertical (Open)
- Datasheet:
-
SH50C-3.0-150.pdf
- Description:
- FIXED IND 150UH 3A 100 MOHM TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SH50C-3.0-150 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amgis, LLC
- Series:
- SH50
- Package/Case:
- Radial, Vertical (Open)
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- Toroidal
- Material - Core:
- Iron Powder
- Inductance:
- 150 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 3 A
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 100mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 10 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.949" L x 0.598" W (24.10mm x 15.20mm)
- Height - Seated (Max):
- 1.059" (26.90mm)
| Image |  |
 |
 |
 |
 |

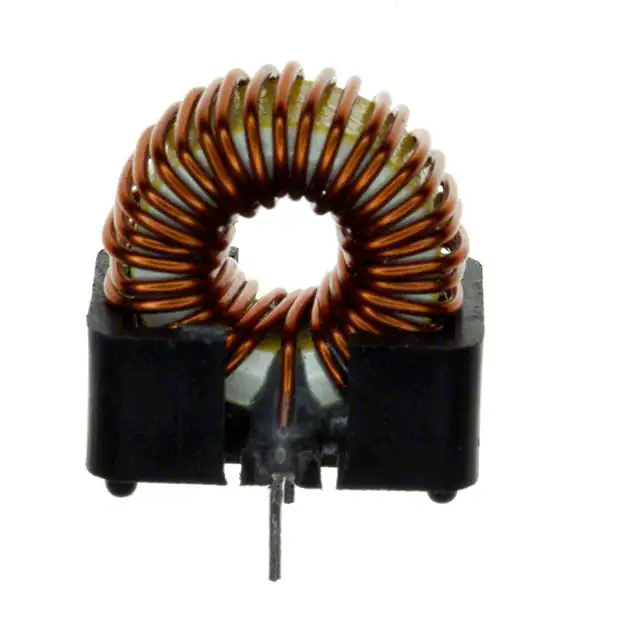

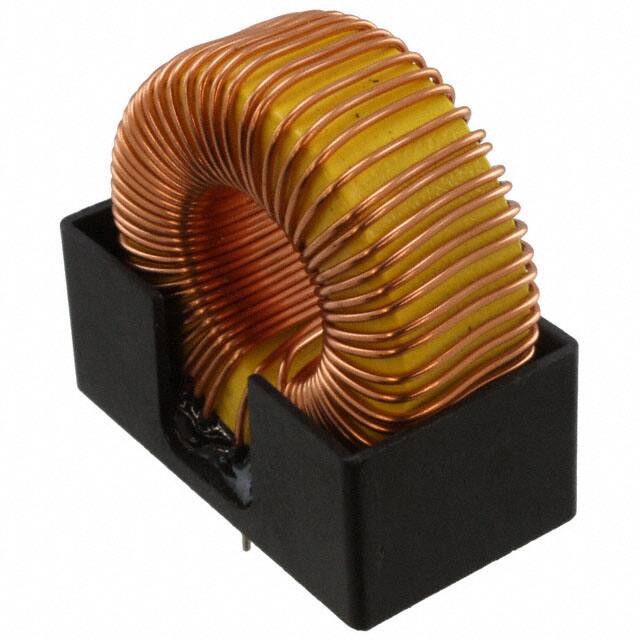

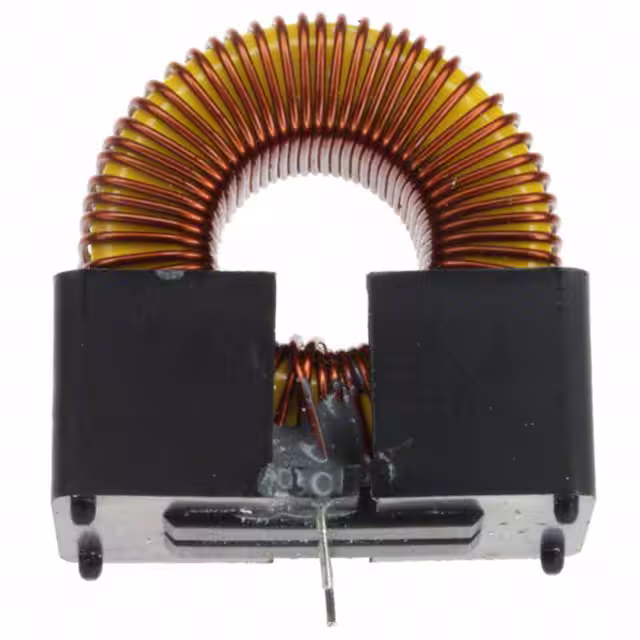

| Part Number | SH50C-3.0-220 | SH50C-3.0-150 | SH50C-2.0-470 | SH50C-3.0-47 | SH50C-3.0-330 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Series | SH50 | SH50 | SH50 | SH50 | SH50 |
| Package/Case | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) | Radial, Vertical (Open) |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 220 µH | 150 µH | 470 µH | 47 µH | 330 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 3 A | 2 A | 3 A | 3 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 70mOhm Max | 100mOhm Max | 170mOhm Max | 50mOhm Max | 150mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 1.252" L x 0.701" W (31.80mm x 17.81mm) |
| Height - Seated (Max) | 1.382" (35.10mm) | 1.059" (26.90mm) | 1.382" (35.10mm) | 0.760" (19.30mm) | 1.382" (35.10mm) |
