Mallory Sonalert Products Inc. SC628D-1R
- Part No.:
- SC628D-1R
- Manufacturer:
- Mallory Sonalert Products Inc.
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
SC628D-1R.pdf
- Description:
- BUZZER PIEZO 42.85MM PNL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC628D-1R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mallory Sonalert Products Inc.
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Driver Circuitry:
- Indicator, Internally Driven
- Input Type:
- DC
- Voltage - Rated:
- -
- Voltage Range:
- 6 ~ 28V
- Frequency:
- 2kHz
- Technology:
- Piezo
- Operating Mode:
- Single Tone
- Duration:
- -
- Sound Pressure Level (SPL):
- 60dB @ 6V, 61cm
- Current - Supply:
- 5 ~ 18mA
- Port Location:
- Top
- Operating Temperature:
- -30°C ~ 65°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Panel Mount
- Termination:
- Screw Terminals
- Size / Dimension:
- 1.687" Dia (42.85mm)
| Image |  |
|
 |
 |
 |

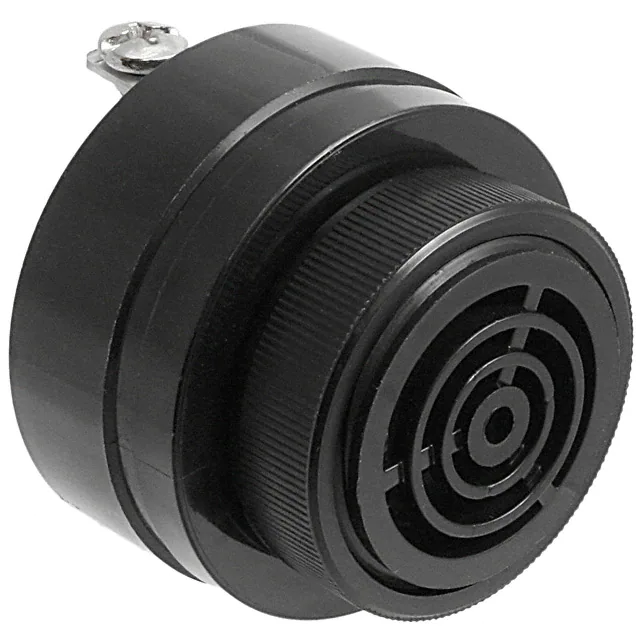

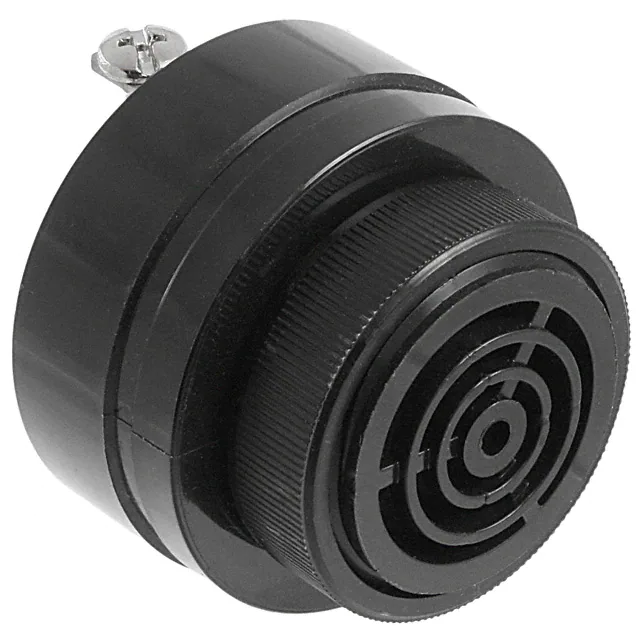

| Part Number | SC628DR | SC628D | SC628DPR | SC628DJR | SC628D-BTR |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| Series | SC | SC | SC | SC | SC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Driver Circuitry | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven |
| Input Type | DC | DC | DC | DC | DC |
| Voltage - Rated | - | - | - | - | - |
| Voltage Range | 6 ~ 28V | 6 ~ 28V | 6 ~ 28V | 6 ~ 28V | 6 ~ 28V |
| Frequency | 2kHz | 1.9kHz | 1.9kHz | 1.9kHz | 2kHz |
| Technology | Piezo | Piezo | Piezo | Piezo | Piezo |
| Operating Mode | Single Tone | Single Tone | Pulse, Fast | Pulse, Slow | Single Tone |
| Duration | - | - | 2 ~ 10 PPS | 0.5 ~ 2 PPS | - |
| Sound Pressure Level (SPL) | 60dB @ 6V, 61cm | 60dB @ 6V, 61cm | 60dB @ 6V, 61cm | 60dB @ 6V, 61cm | 60dB @ 6V, 61cm |
| Current - Supply | 6 ~ 23mA | 5 ~ 18mA | 6 ~ 23mA | 5 ~ 23mA | 6 ~ 23mA |
| Port Location | Top | Top | Top | Top | Top |
| Operating Temperature | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C |
| Approval Agency | cUL, UL | UL | cUL, UL | cUL, UL | cUL, UL |
| Ratings | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.692" Dia (42.98mm) | 1.692" Dia (42.98mm) | 1.692" Dia (42.98mm) | 1.692" Dia (42.98mm) | 1.692" Dia (42.98mm) |
