Mallory Sonalert Products Inc. SC616P
- Part No.:
- SC616P
- Manufacturer:
- Mallory Sonalert Products Inc.
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
SC616P.pdf
- Description:
- BUZZER PIEZO 42.85MM PNL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC616P Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mallory Sonalert Products Inc.
- Series:
- SC
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Driver Circuitry:
- Indicator, Internally Driven
- Input Type:
- DC
- Voltage - Rated:
- -
- Voltage Range:
- 6 ~ 16V
- Frequency:
- 2.9kHz
- Technology:
- Piezo
- Operating Mode:
- Pulse, Fast
- Duration:
- 2 ~ 10 PPS
- Sound Pressure Level (SPL):
- 68dB @ 6V, 61cm
- Current - Supply:
- 2 ~ 9mA
- Port Location:
- Top
- Operating Temperature:
- -30°C ~ 65°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Panel Mount
- Termination:
- Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Size / Dimension:
- 1.687" Dia (42.85mm)
| Image |  |
 |
 |
|
|

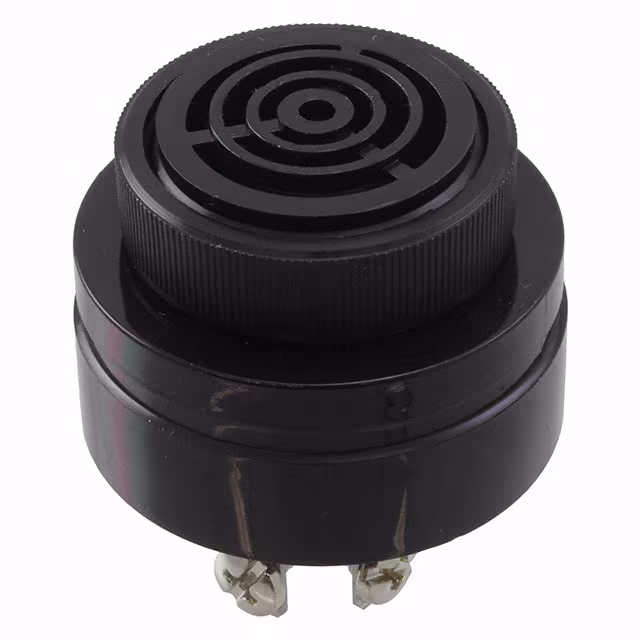

| Part Number | SC616PR | SC616PU-1R | SC616PU-1 | SC616P-1R | SC616P-1 |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| Series | SC | SC | SC | SC | SC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Driver Circuitry | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven |
| Input Type | DC | DC | DC | DC | DC |
| Voltage - Rated | - | - | - | - | - |
| Voltage Range | 6 ~ 16V | 6 ~ 16V | 6 ~ 16V | 6 ~ 16V | 6 ~ 16V |
| Frequency | 2.9kHz | 2.9kHz | 2.9kHz | 2.9kHz | 2.9kHz |
| Technology | Piezo | Piezo | Piezo | Piezo | Piezo |
| Operating Mode | Pulse, Fast | Pin Selectable | Pin Selectable | Pulse, Fast | Pulse, Fast |
| Duration | 2 ~ 10 PPS | 5 PPS | 5 PPS | 2 ~ 10 PPS | - |
| Sound Pressure Level (SPL) | 68dB @ 6V, 61cm | 68dB @ 6V, 61cm | 68dB @ 6V, 61cm | 68dB @ 6V, 61cm | 68dB @ 6V, 61cm |
| Current - Supply | 2 ~ 9mA | 30mA | 30mA | 2 ~ 9mA | 2 ~ 9mA |
| Port Location | Top | Top | Top | Top | Top |
| Operating Temperature | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C | -30°C ~ 65°C |
| Approval Agency | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Ingress Protection | - | NEMA 3R, 4X, 12 | - | NEMA 3R, 4X, 12 | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.687" Dia (42.85mm) | 1.687" Dia (42.85mm) | 1.687" Dia (42.85mm) | 1.687" Dia (42.85mm) | 1.687" Dia (42.85mm) |
