Kingbright SC10-21SURKWA
- Part No.:
- SC10-21SURKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (1.197", 30.40mm)
- Datasheet:
-
SC10-21SURKWA.pdf
- Description:
- DISPLAY 7-SEG 1" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC10-21SURKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (1.197", 30.40mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
- Digit/Alpha Size:
- 1.00" (25.40mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.95V
- Current - Test:
- 20mA
- Millicandela Rating:
- 260mcd
- Wavelength - Peak:
- 645nm
- Power Dissipation (Max):
- 75mW
| Image |  |
|
 |
|
|

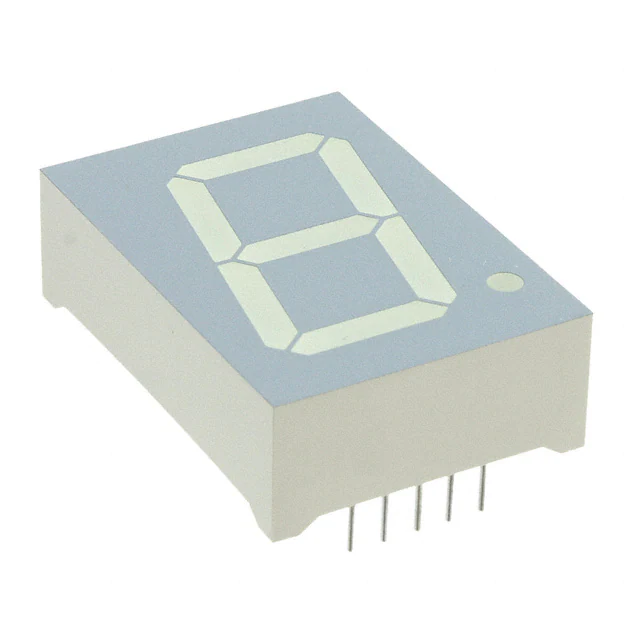

| Part Number | SC10-21SURKWA | SC10-11EWA | SC10-21SRWA | SC10-11SRWA | SC10-21EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (1.197", 30.40mm) | 14-DIP (0.600", 15.24mm), 11 Leads | 10-DIP (1.200", 30.48mm) | 14-DIP (0.600", 15.24mm), 11 Leads | 10-DIP (1.200", 30.48mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Obsolete | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) |
| Digit/Alpha Size | 1.00" (25.40mm) | 1.02" (26.00mm) | 1.00" (25.40mm) | 1.02" (26.00mm) | 1.00" (25.40mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.95V | 4V | 3.7V | 3.7V | 4V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 260mcd | 24mcd | 120mcd | 120mcd | 23mcd |
| Wavelength - Peak | 645nm | 627nm | 660nm | 660nm | 627nm |
| Power Dissipation (Max) | 75mW | 150mW | 150mW | 150mW | 150mW |
