Kingbright SA52-11EWA
- Part No.:
- SA52-11EWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.600", 15.24mm)
- Datasheet:
-
SA52-11EWA.pdf
- Description:
- DISPLAY 7SEG 0.52" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SA52-11EWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (0.600", 15.24mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm)
- Digit/Alpha Size:
- 0.52" (13.21mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 2V
- Current - Test:
- 20mA
- Millicandela Rating:
- 6.4mcd
- Wavelength - Peak:
- 627nm
- Power Dissipation (Max):
- 75mW
| Image |  |
 |
 |
 |

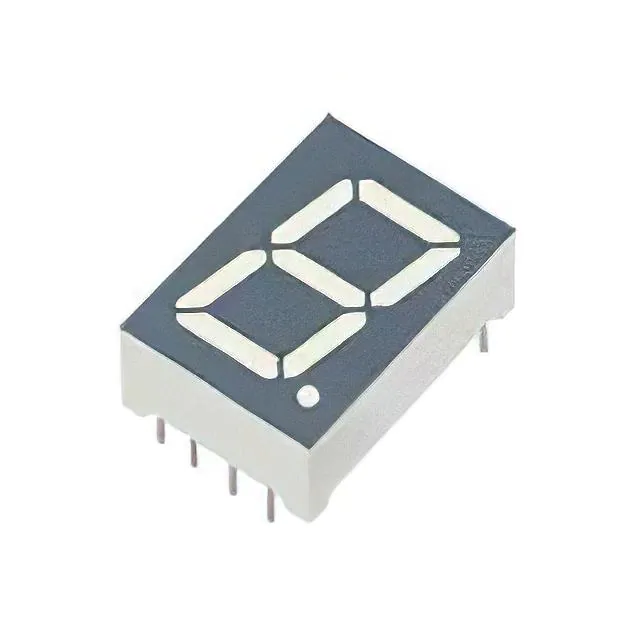

| Part Number | SA52-11GWA | SA52-11EWA | SA52-11SURKWA | SA52-11SRWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - |
| Package/Case | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) |
| Packaging | Tube | Tube | Bulk | Tube |
| Product Status | Active | Active | Active | Obsolete |
| Display Format | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) | 0.689" H x 0.488" W x 0.285" D (17.50mm x 12.40mm x 7.25mm) | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) |
| Digit/Alpha Size | 0.52" (13.21mm) | 0.52" (13.21mm) | 0.52" (13.20mm) | 0.52" (13.21mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Green | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2V | 1.85V | 1.85V |
| Current - Test | 20mA | 20mA | 10mA | 20mA |
| Millicandela Rating | 10.5mcd | 6.4mcd | 110mcd | 34mcd |
| Wavelength - Peak | 565nm | 627nm | 645nm | 660nm |
| Power Dissipation (Max) | 62.5mW | 75mW | 75mW | 75mW |
