Seoul Semiconductor Inc. S4SM-0661509736-0A600H3S-00001

Name: S4SM-0661509736-0A600H3S-00001
Brand: Seoul Semiconductor Inc.
SKU: S4SM-0661509736-0A600H3S-00001
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: S4SM-0661509736-0A600H3S-00001

Manufacturer:: Seoul Semiconductor Inc.

Category:: LED COBs, Engines, Modules, Strips

Package:

Description:: LED COB SUNLIKE COOL WH SQ 5000K

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

S4SM-0661509736-0A600H3S-00001 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Seoul Semiconductor Inc.

Series:: SunLike

Packaging:: Tray

Product Status:: Active

Type:: Chip On Board (COB)

Color:: White, Cool

CCT (K):: 5000K 3-Step MacAdam Ellipse

Wavelength:: -

Configuration:: Square

Luminous Flux @ Current/Temperature:: 585lm (Typ)

Current - Test:: 170mA

Temperature - Test:: 85°C

Voltage - Forward (Vf) (Typ):: 36.1V

Lumens/Watt @ Current - Test:: 95 lm/W

Current - Max:: 260mA

CRI (Color Rendering Index):: 97 (Typ)

Viewing Angle:: 115°

Features:: -

Size / Dimension:: 13.50mm L x 13.50mm W

Height:: 1.45mm

Light Emitting Surface (LES):: 6.00mm Dia

Lens Type:: Flat

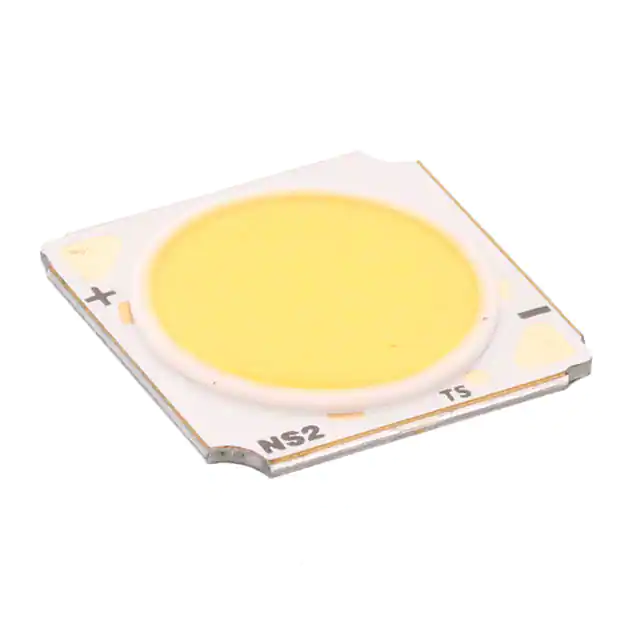

Part Number	S4SM-0661509736-0A600H3S-00001	S4SM-1564509736-0B500H3S-00001	S4SM-1566509736-0C500H3S-00001	S4SM-1566409736-0C500H3S-00001	S4SM-1564279736-0B500H3S-00001
Manufacturer	Seoul Semiconductor Inc.	Seoul Semiconductor Inc.	Seoul Semiconductor Inc.	Seoul Semiconductor Inc.	Seoul Semiconductor Inc.
Series	SunLike	SunLike	SunLike	SunLike	SunLike
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Type	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)
Color	White, Cool	White, Cool	White, Cool	White, Neutral	White, Warm
CCT (K)	5000K 3-Step MacAdam Ellipse	5000K 3-Step MacAdam Ellipse	5000K 3-Step MacAdam Ellipse	4000K 3-Step MacAdam Ellipse	2700K 3-Step MacAdam Ellipse
Wavelength	-	-	-	-	-
Configuration	Square	Square	Square	Square	Square
Luminous Flux @ Current/Temperature	585lm (Typ)	1620lm (Typ)	2655lm (Typ)	2540lm (Typ)	1385lm (Typ)
Current - Test	170mA	430mA	720mA	720mA	430mA
Temperature - Test	85°C	85°C	85°C	85°C	85°C
Voltage - Forward (Vf) (Typ)	36.1V	35V	35.2V	35.2V	35V
Lumens/Watt @ Current - Test	95 lm/W	108 lm/W	105 lm/W	100 lm/W	92 lm/W
Current - Max	260mA	860mA	1.44A	1.44A	860mA
CRI (Color Rendering Index)	97 (Typ)	97 (Typ)	97 (Typ)	97 (Typ)	97 (Typ)
Viewing Angle	115°	115°	115°	115°	115°
Features	-	-	-	-	-
Size / Dimension	13.50mm L x 13.50mm W	19.00mm L x 19.00mm W	19.00mm L x 19.00mm W	19.00mm L x 19.00mm W	19.00mm L x 19.00mm W
Height	1.45mm	1.45mm	1.45mm	1.45mm	1.45mm
Light Emitting Surface (LES)	6.00mm Dia	14.50mm Dia	14.50mm Dia	14.50mm Dia	14.50mm Dia
Lens Type	Flat	Flat	Flat	Flat	Flat
