Inspired LED, LLC 12V-SB-WW-12M
- Part No.:
- 12V-SB-WW-12M
- Manufacturer:
- Inspired LED, LLC
- Category:
- LED COBs, Engines, Modules, Strips
- Package:
- Datasheet:
-
12V-SB-WW-12M.pdf
- Description:
- LED ENG WRM WHT 3000K 12M REEL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
12V-SB-WW-12M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Inspired LED, LLC
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- LED Engine
- Color:
- White, Warm
- CCT (K):
- 3000K
- Wavelength:
- -
- Configuration:
- Linear Light Strip, Flexible
- Luminous Flux @ Current/Temperature:
- 85lm (Typ)
- Current - Test:
- -
- Temperature - Test:
- -
- Voltage - Forward (Vf) (Typ):
- 12V
- Lumens/Watt @ Current - Test:
- -
- Current - Max:
- -
- CRI (Color Rendering Index):
- 92
- Viewing Angle:
- 120°
- Features:
- -
- Size / Dimension:
- 12000.0mm L x 8.00mm W (46.99mm L per Segment)
- Height:
- 1.50mm
- Light Emitting Surface (LES):
- -
- Lens Type:
- Flat
| Image |  |
 |
 |
 |
 |

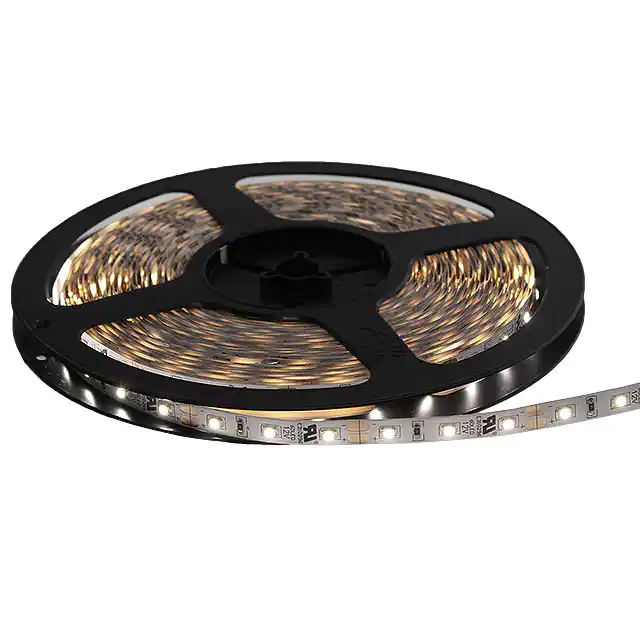

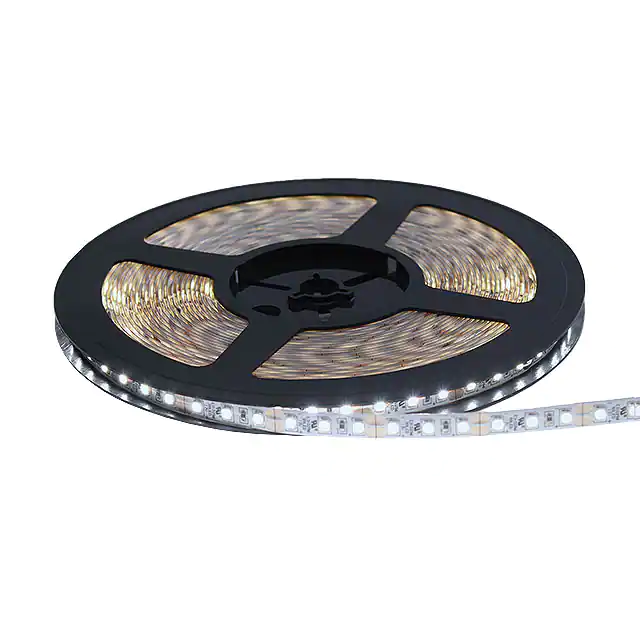

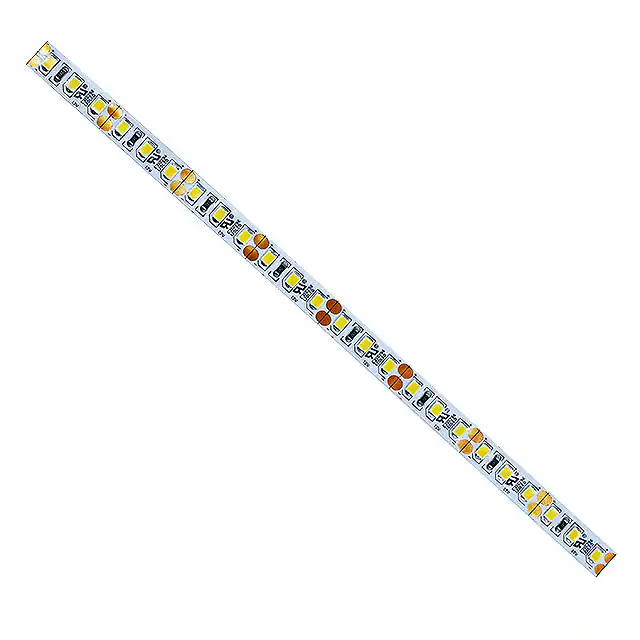

| Part Number | 12V-SB-WW-12M | 12V-MB-CW-12M | 12V-MB-PW-12M | 12V-UB-CW-12M | 12V-SB-PW-12M |
| Manufacturer | Inspired LED, LLC | Inspired LED, LLC | Inspired LED, LLC | Inspired LED, LLC | Inspired LED, LLC |
| Series | - | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED Engine | LED Engine | LED Engine | LED Engine | LED Engine |
| Color | White, Warm | White, Cool | White, Neutral | White, Cool | White, Neutral |
| CCT (K) | 3000K | 6000K | 4200K | 6000K | 4200K |
| Wavelength | - | - | - | - | - |
| Configuration | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible |
| Luminous Flux @ Current/Temperature | 85lm (Typ) | - | - | 95lm (Typ) | 95lm (Typ) |
| Current - Test | - | - | - | - | - |
| Temperature - Test | - | - | - | - | - |
| Voltage - Forward (Vf) (Typ) | 12V | 12V | 12V | 12V | 12V |
| Lumens/Watt @ Current - Test | - | - | - | - | - |
| Current - Max | - | - | - | - | - |
| CRI (Color Rendering Index) | 92 | 92 | 93 | 85 | 94 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Features | - | - | - | - | - |
| Size / Dimension | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 12000.0mm L x 8.00mm W (25.40mm L per Segment) | 12000.0mm L x 8.00mm W (25.40mm L per Segment) | 12000.0mm L x 8.00mm W (26.92mm L per Segment) | 12000.0mm L x 8.00mm W (46.99mm L per Segment) |
| Height | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm |
| Light Emitting Surface (LES) | - | - | - | - | - |
| Lens Type | Flat | Flat | Flat | Flat | Flat |
