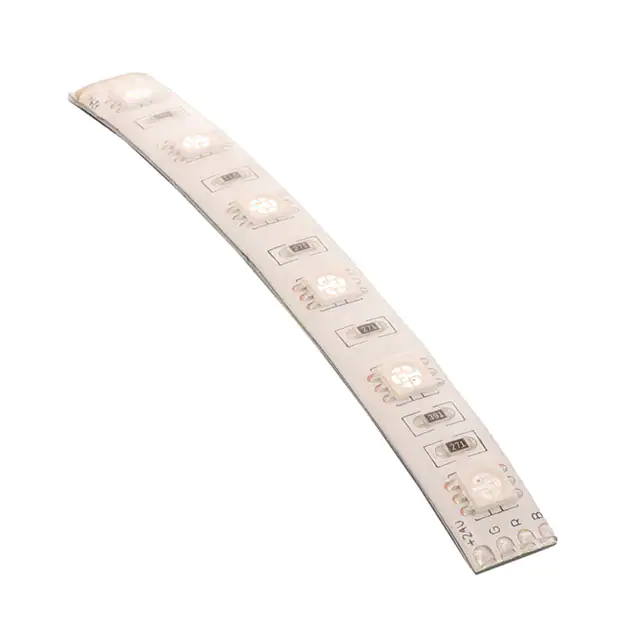

American Bright Optoelectronics Corporation AB-FC02406-19700-XA2
- Part No.:
- AB-FC02406-19700-XA2
- Manufacturer:
- American Bright Optoelectronics Corporation
- Category:
- LED COBs, Engines, Modules, Strips
- Package:
- Datasheet:
-
AB-FC02406-19700-XA2.pdf
- Description:
- LED MOD AB-FC RGB LNR STRIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AB-FC02406-19700-XA2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Bright Optoelectronics Corporation
- Series:
- AB-FC
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- LED Module
- Color:
- Red, Green, Blue (RGB)
- CCT (K):
- -
- Wavelength:
- 470nm (465nm ~ 475nm)
- Configuration:
- Linear Light Strip, Flexible
- Luminous Flux @ Current/Temperature:
- 90lm Red, 248lm Green, 56lm Blue
- Current - Test:
- 840mA Red, 840mA Green, 840mA Blue
- Temperature - Test:
- 25°C
- Voltage - Forward (Vf) (Typ):
- 24V
- Lumens/Watt @ Current - Test:
- 25 lm/W Red, 18 lm/W Green, 58 lm/W Blue
- Current - Max:
- -
- CRI (Color Rendering Index):
- -
- Viewing Angle:
- 120°
- Features:
- IP65
- Size / Dimension:
- 5000.00mm L x 10.00mm W (100.00mm L per Segment)
- Height:
- 2.50mm
- Light Emitting Surface (LES):
- -
- Lens Type:
- Flat
| Image |  |
 |
|
 |
 |

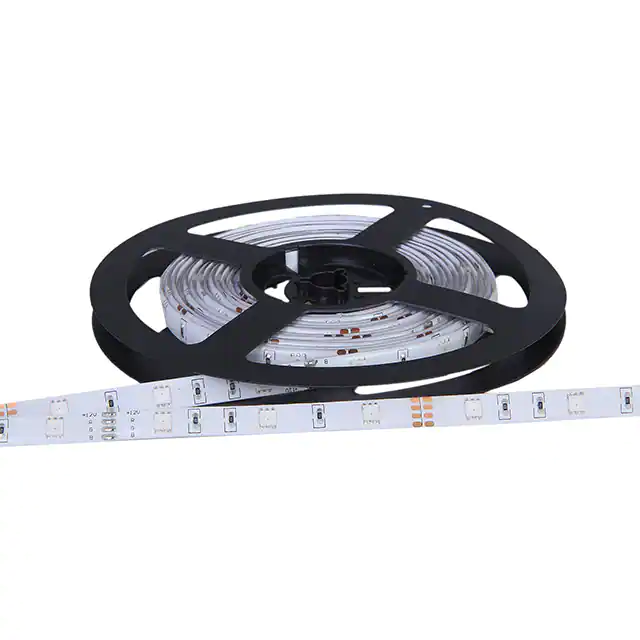

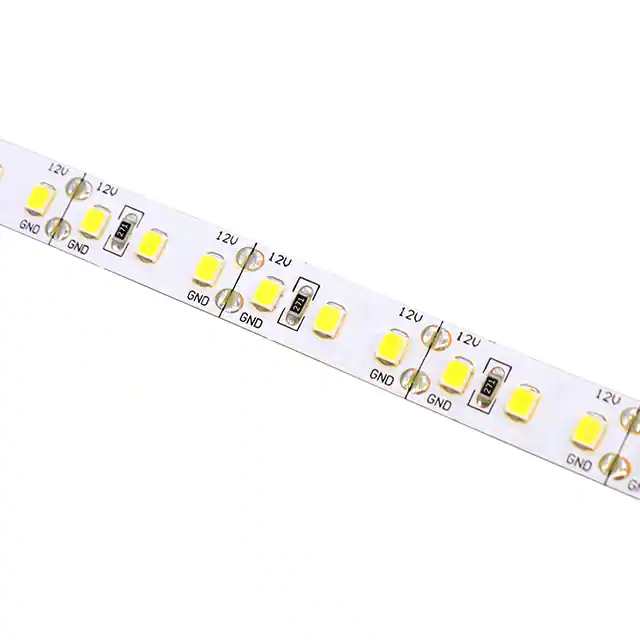

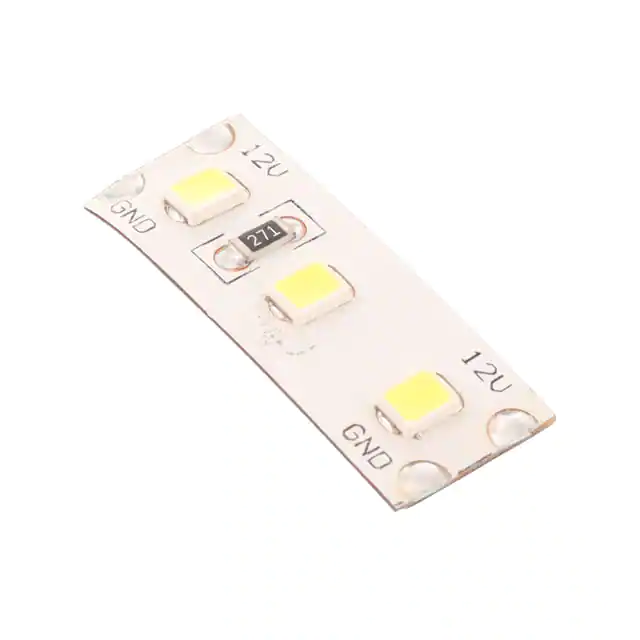

| Part Number | AB-FC02406-19700-XA2 | AB-FC01206-19712-XA2 | AB-FC02406-19712-XA2 | AB-FA01230-19700-8A1 | AB-FA01250-19700-8A1 |
| Manufacturer | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation |
| Series | AB-FC | AB-FC | AB-FC | AB-FA | AB-FA |
| Packaging | Tape & Reel (TR) | Bag | Bag | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED Module | LED Module | LED Module | LED Module | LED Module |
| Color | Red, Green, Blue (RGB) | Red, Green, Blue (RGB) | Red, Green, Blue (RGB) | White, Warm | White, Cool |
| CCT (K) | - | - | - | 3000K | 5000K |
| Wavelength | 470nm (465nm ~ 475nm) | 630nm Red, 528nm Blue, 470nm Green | 630nm Red, 528nm Blue, 470nm Green | - | - |
| Configuration | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible | Linear Light Strip, Flexible |
| Luminous Flux @ Current/Temperature | 90lm Red, 248lm Green, 56lm Blue | 90lm Red, 248lm Green, 56lm Blue | 90lm Red, 248lm Green, 56lm Blue | 720lm | 720lm |
| Current - Test | 840mA Red, 840mA Green, 840mA Blue | 840mA | 420mA | 660mA | 660mA |
| Temperature - Test | 25°C | - | - | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 24V | 12V | 24V | 12V | 12V |
| Lumens/Watt @ Current - Test | 25 lm/W Red, 18 lm/W Green, 58 lm/W Blue | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | 91 lm/W | 91 lm/W |
| Current - Max | - | - | - | - | - |
| CRI (Color Rendering Index) | - | - | - | 80 | 80 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Features | IP65 | IP65 | IP65 | IP20 | IP20 |
| Size / Dimension | 5000.00mm L x 10.00mm W (100.00mm L per Segment) | 5000.00mm L x 10.00mm W | 5000.00mm L x 10.00mm W | 5000.00mm L x 8.00mm W (25.00mm L per Segment) | 5000.00mm L x 8.00mm W (25.00mm L per Segment) |
| Height | 2.50mm | 2.50mm | 2.50mm | 1.60mm | 1.60mm |
| Light Emitting Surface (LES) | - | - | - | - | - |
| Lens Type | Flat | Flat | Flat | Flat | Flat |
