Banner Engineering Corporation S18DLGRYP
- Part No.:
- S18DLGRYP
- Manufacturer:
- Banner Engineering Corporation
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
S18DLGRYP.pdf
- Description:
- INDICATOR DAYLIGHT GRN/RED
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
S18DLGRYP Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Banner Engineering Corporation
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Green, Red, Yellow
- Lens Color:
- -
- Lens Transparency:
- Diffused
- Ratings:
- DC
- Voltage:
- 10V ~ 30V
- Current:
- 25mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.709" (18.00mm)
- Lens Size:
- -
- Lens Style:
- Round with Flat Top
- Millicandela Rating:
- 2.3mcd Green, 1.4mcd Red, 1.2mcd Yellow
- Wavelength - Peak:
- -
- Viewing Angle:
- -
- Termination Style:
- Wire Leads
- Ingress Protection:
- IP67, IP69K, NEMA 4X
- Features:
- -
| Image |  |
 |
 |

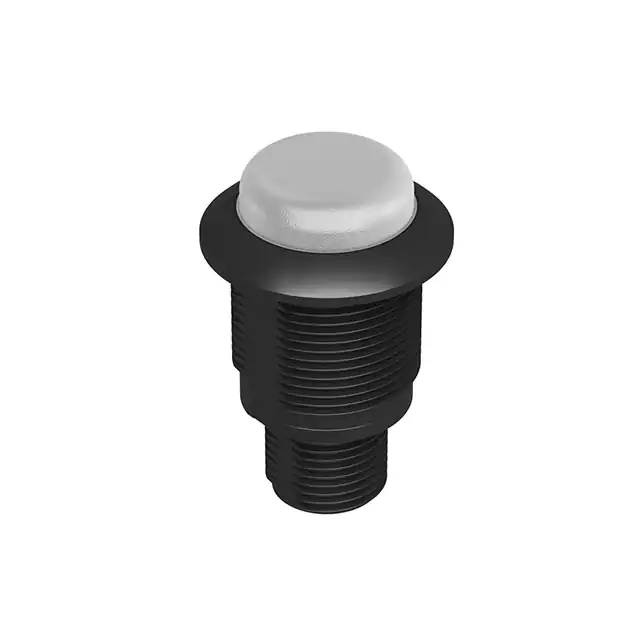

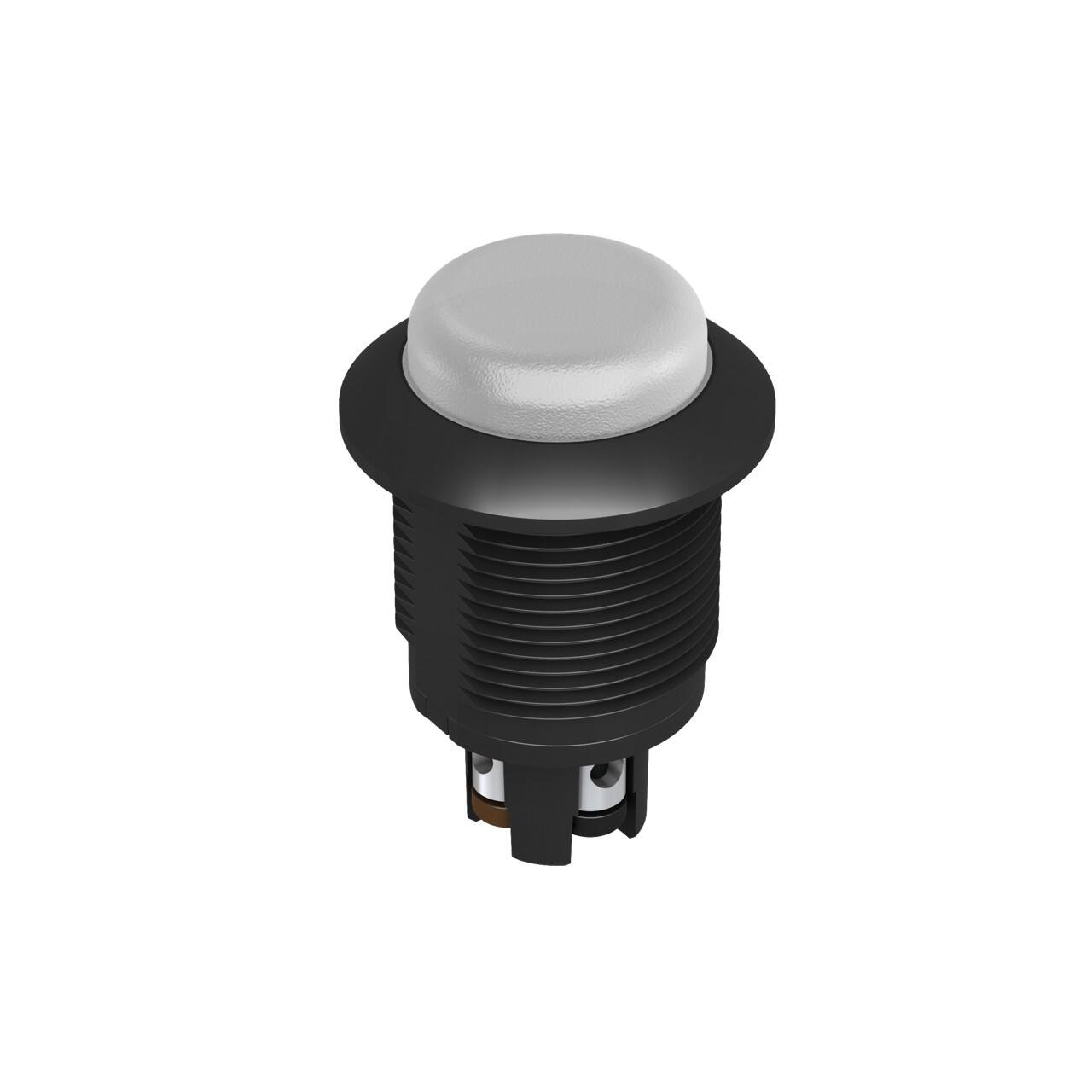

| Part Number | S18DLGRYP | S18DLGRYPT | S18DLGRYPQ |
| Manufacturer | Banner Engineering Corporation | Banner Engineering Corporation | Banner Engineering Corporation |
| Series | - | S18L | - |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Type | LED | LED | LED |
| Lamp Color | Green, Red, Yellow | Green, Red, Yellow | Green, Red, Yellow |
| Lens Color | - | - | - |
| Lens Transparency | Diffused | Clear | Diffused |
| Ratings | DC | DC | DC |
| Voltage | 10V ~ 30V | 10V ~ 30V | 10V ~ 30V |
| Current | 25mA | 25mA | 25mA |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.709" (18.00mm) | 0.71" (18.00mm) | 0.709" (18.00mm) |
| Lens Size | - | - | - |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 2.3mcd Green, 1.4mcd Red, 1.2mcd Yellow | 2.3mcd Green, 1.4mcd Red, 1.2mcd Yellow | 2.3mcd Green, 1.4mcd Red, 1.2mcd Yellow |
| Wavelength - Peak | - | - | - |
| Viewing Angle | - | - | - |
| Termination Style | Wire Leads | Screw Terminal | Quick Connect |
| Ingress Protection | IP67, IP69K, NEMA 4X | IP67, IP69K, NEMA 4X | IP67, IP69K, NEMA 4X |
| Features | - | - | - |
