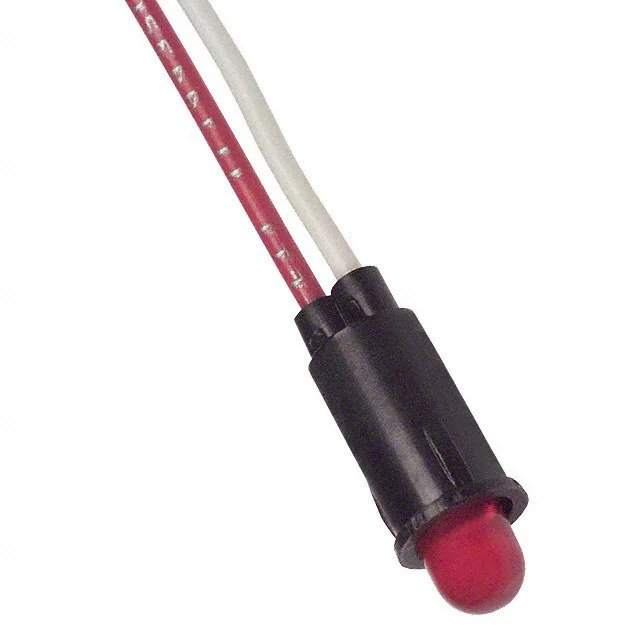

Visual Communications Company - VCC 5100H1
- Part No.:
- 5100H1
- Manufacturer:
- Visual Communications Company - VCC
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
5100H1.pdf
- Description:
- LED RED 1/4" HOLE PANEL MOUNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5100H1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Visual Communications Company - VCC
- Series:
- 5100H
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Red
- Lens Color:
- -
- Lens Transparency:
- -
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2V
- Current:
- 35mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.25" (6.35mm)
- Lens Size:
- -
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 30mcd
- Wavelength - Peak:
- 635nm
- Viewing Angle:
- -
- Termination Style:
- Wire Leads - 6" (152.40mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
 |

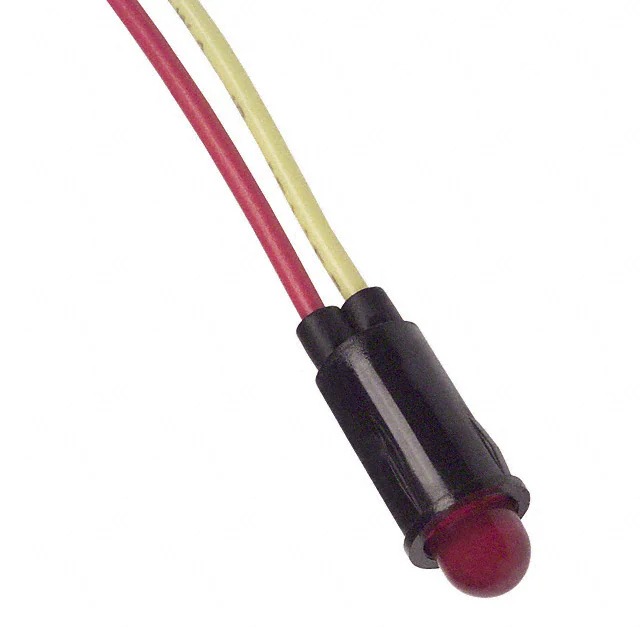

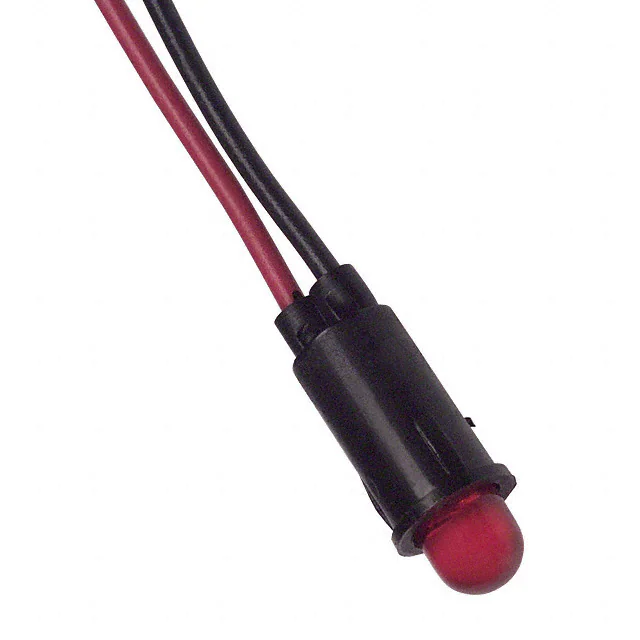

| Part Number | 5100H1 | 5100H1FL | 5100H1/5 | 5100H1LC |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Series | 5100H | 5100H | 5100H | 5100H |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | LED | LED | LED | LED |
| Lamp Color | Red | Red | Green, Red | Red |
| Lens Color | - | Red | - | - |
| Lens Transparency | - | Diffused | - | - |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2V | 9V ~ 12V | 2.2V Green, 2.2V Red | 1.8V |
| Current | 35mA | 56mA | 20mA Green, 20mA Red | 7mA |
| Panel Cutout Shape | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) |
| Lens Size | - | 5mm, T-1 3/4 | - | - |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 30mcd | 80mcd | 6mcd Green, 6mcd Red | 2mcd |
| Wavelength - Peak | 635nm | 625nm | 565nm Green, 650nm Red | 635nm |
| Viewing Angle | - | 60° | - | - |
| Termination Style | Wire Leads - 6" (152.40mm) | Wire Leads - 6.1" (154.94mm) | Wire Leads - 6" (152.40mm) | Wire Leads - 6" (152.40mm) |
| Ingress Protection | - | - | - | - |
| Features | - | Flashing LED | - | - |
