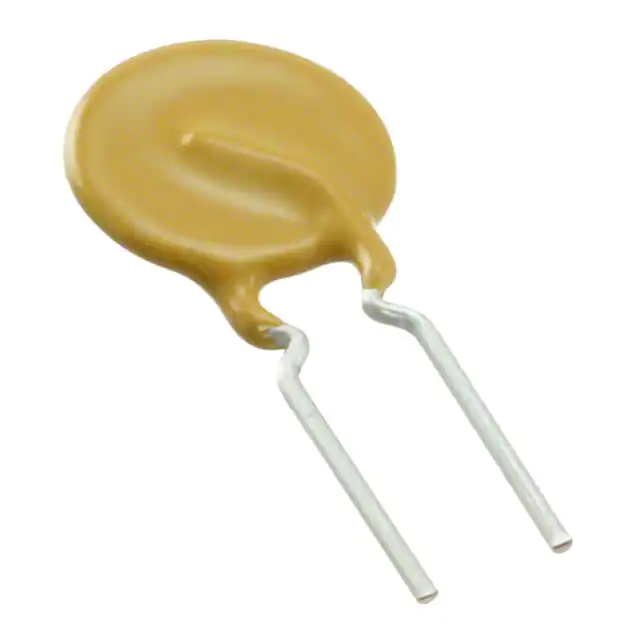

Littelfuse Inc. RXEF110

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

Radial, Disc

Series:

PolySwitch®, RXEF

Packaging:

Bag

Product Status:

Active

Type:

Polymeric

Voltage - Max:

72V

Current - Hold (Ih) (Max):

1.1 A

Current - Trip (It):

2.2 A

Current - Max:

40 A

Time to Trip:

8.2 s

Resistance - Initial (Ri) (Min):

150 mOhms

Resistance - Post Trip (R1) (Max):

380 mOhms

Resistance - 25°C (Typ):

-

Operating Temperature:

-40°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Through Hole

Size / Dimension:

0.504" Dia x 0.118" T (12.80mm x 3.00mm)

Height - Seated (Max):

0.689" (17.50mm)

Thickness (Max):

-

Lead Spacing:

0.200" (5.08mm)
