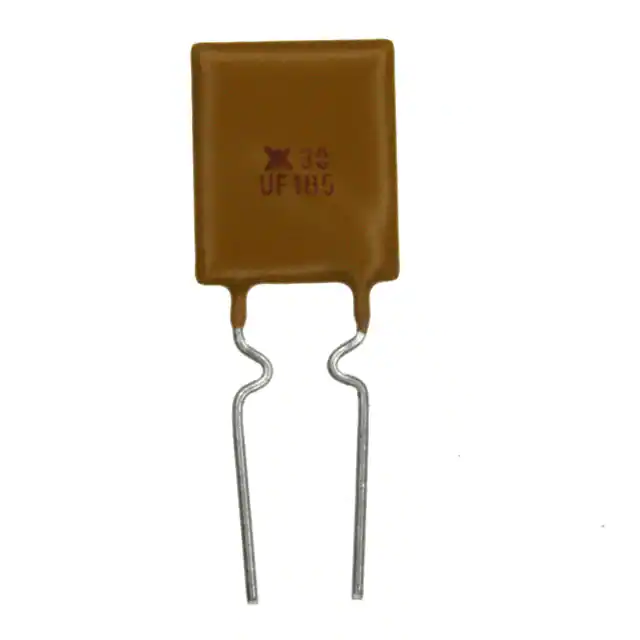

Littelfuse Inc. RUEF185
- Part No.:
- RUEF185
- Manufacturer:
- Littelfuse Inc.
- Category:
- PTC Resettable Fuses
- Package:
- Radial, Disc
- Datasheet:
-
RUEF185.pdf
- Description:
- PTC RESET FUSE 30V 1.85A RADIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RUEF185 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- Radial, Disc
- Series:
- PolySwitch®, RUEF
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- Polymeric
- Voltage - Max:
- 30V
- Current - Hold (Ih) (Max):
- 1.85 A
- Current - Trip (It):
- 3.7 A
- Current - Max:
- 100 A
- Time to Trip:
- 8.7 s
- Resistance - Initial (Ri) (Min):
- 30 mOhms
- Resistance - Post Trip (R1) (Max):
- 90 mOhms
- Resistance - 25°C (Typ):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.402" Dia x 0.118" T (10.20mm x 3.00mm)
- Height - Seated (Max):
- 0.618" (15.70mm)
- Thickness (Max):
- -
- Lead Spacing:
- 0.199" (5.05mm)
| Image |  |
|
|
 |
|
| Part Number | RUEF185 | RUEF185-2 | RUEF185-1 | RUEF185-AP | RUEF185S |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Series | PolySwitch®, RUEF | PolySwitch®, RUEF | PolySwitch®, RUEF | PolySwitch®, RUEF | PolySwitch®, RUEF |
| Packaging | Bag | Tape & Reel (TR) | Bag | Cut Tape (CT) | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V | 30V | 30V |
| Current - Hold (Ih) (Max) | 1.85 A | 1.85 A | 1.85 A | 1.85 A | 1.85 A |
| Current - Trip (It) | 3.7 A | 3.7 A | 3.7 A | 3.7 A | 3.7 A |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A |
| Time to Trip | 8.7 s | 8.7 s | 8.7 s | 8.7 s | 8.7 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 30 mOhms | 30 mOhms | 30 mOhms | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 90 mOhms | 90 mOhms | 90 mOhms | 90 mOhms | 90 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) |
| Height - Seated (Max) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.618" (15.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
