Raltron Electronics RTV-2016AF31O-S-26.000-TR
- Part No.:
- RTV-2016AF31O-S-26.000-TR
- Manufacturer:
- Raltron Electronics
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
RTV-2016AF31O-S-26.000-TR.pdf
- Description:
- XTAL OSC VCTCXO 26MHZ 1.8V CLP S
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RTV-2016AF31O-S-26.000-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Raltron Electronics
- Series:
- RTV-2016
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- VCTCXO
- Frequency:
- 26 MHz
- Function:
- -
- Output:
- Clipped Sine Wave
- Voltage - Supply:
- 1.8V
- Frequency Stability:
- ±500ppb
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -30°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 2mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):
- 0.037" (0.95mm)
| Image |  |
 |
 |
 |
|

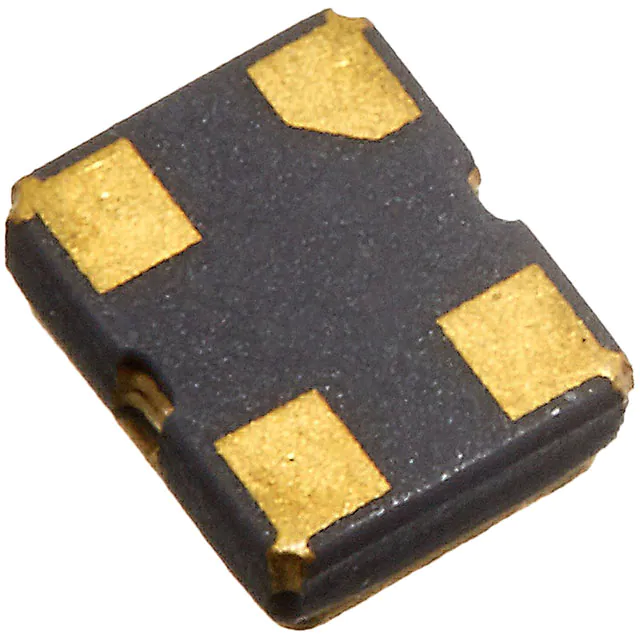

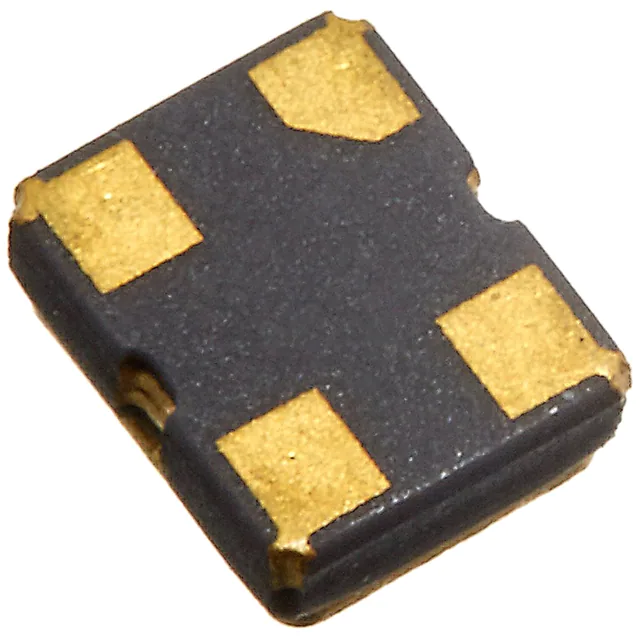

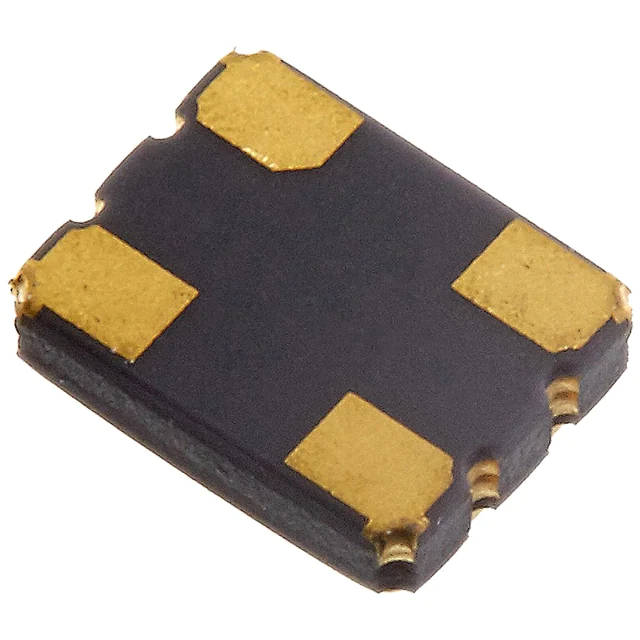

| Part Number | RTV-2016AF31O-S-26.000-TR | RTV-2520BF33P-S-19.200-TR | RTV-2520A333H-S-19.200-TR | RTV-104EF13P-S-10.000-TR | RTV-104DF333-S-40.000-TR |
| Manufacturer | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| Series | RTV-2016 | RTV-2520 | RTV-2520 | RTV-104 | RTV-104 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | VCTCXO | VCTCXO | VCTCXO | VCTCXO | VCTCXO |
| Frequency | 26 MHz | 19.2 MHz | 19.2 MHz | 10 MHz | 40 MHz |
| Function | - | - | - | - | - |
| Output | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave |
| Voltage - Supply | 1.8V | 3V | 3.3V | 3V | 3.3V |
| Frequency Stability | ±500ppb | ±1ppm | ±500ppb | ±2.5ppm | ±2ppm |
| Absolute Pull Range (APR) | - | ±1ppm | - | ±1ppm | ±1ppm |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | - | -30°C ~ 75°C | -30°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 2mA | 2mA | 2.5mA | 1.5mA | 2mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
