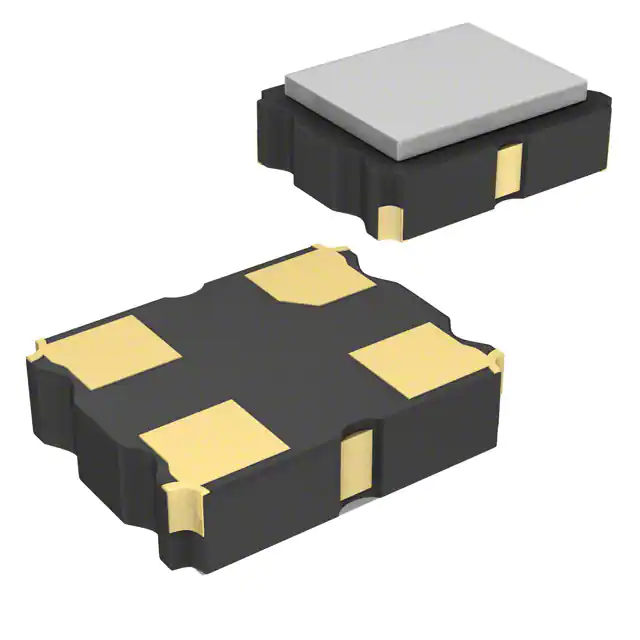

EPSON SG-210STF 24.0000ML0
- Part No.:
- SG-210STF 24.0000ML0
- Manufacturer:
- EPSON
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Description:
- XTAL OSC XO 24.0000MHZ CMOS SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SG-210STF 24.0000ML0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- EPSON
- Series:
- SG-210STF
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 24 MHz
- Function:
- Standby (Power Down)
- Output:
- CMOS
- Voltage - Supply:
- 1.6V ~ 3.6V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 2.2mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.035" (0.90mm)
| Image |  |
|
|
|
.jpg) |

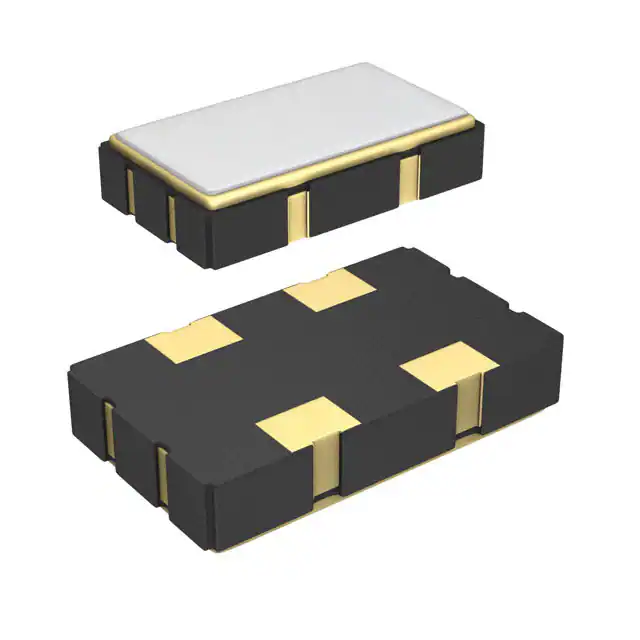

| Part Number | SG-210STF 24.0000ML0 | SG-210STF 25.0000ML3 | SG-210STF 12.2880ML | SG-210STF 16.0000ML | SG5032CAN 24.000000M-TJGA3 |
| Manufacturer | EPSON | EPSON | EPSON | EPSON | EPSON |
| Series | SG-210STF | SG-210STF | SG-210STF | SG-210STF | SG5032CAN |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Strip | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 24 MHz | 25 MHz | 12.288 MHz | 16 MHz | 24 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 2.2mA | 2.2mA | 1.8mA | 1.8mA | 3mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.051" (1.30mm) |
- Include Parts
- Popular Search
The following parts include "SG-210STF 24.0000ML0" in Silicon Labs SG-210STF 24.0000ML0.
- Part Number
- Manufacturer
- Package
- Description
- ECS-2333-160-BN-TR ECS Inc. 4-SMD, No Lead XTAL OSC XO 16.0000MHZ HCMOS SMD
- ECS-2333-240-BN-TR ECS Inc. 4-SMD, No Lead XTAL OSC XO 24.0000MHZ HCMOS SMD
- KC2016Z25.0000C1KX00 KYOCERA AVX 4-SMD, No Lead XTAL OSC XO 25.0000MHZ CMOS SMD
- ECS-2033-250-BN ECS Inc. 4-SMD, No Lead XTAL OSC XO 25.0000MHZ CMOS SMD
- O 25,0-JO32-B-1V3-1-T1-LF Jauch Quartz 4-SMD, No Lead XTAL OSC XO 25.0000MHZ HCMOS SMD
- SIT1533AI-H4-DCC-32.768E SiTime 4-SMD, No Lead MEMS OSC XO 32.7680KHZ LVCMOS
- ECS-2333-500-BN-TR ECS Inc. 4-SMD, No Lead XTAL OSC XO 50.0000MHZ HCMOS SMD
- COM1305-50.000-EXT-T-TR Raltron Electronics 4-SMD, No Lead XTAL OSC XO 50MHZ HCMOS SMD
- SG-210STF 24.0000ML0 EPSON 4-SMD, No Lead XTAL OSC XO 24.0000MHZ CMOS SMD
- ECS-3225MV-320-CN-TR ECS Inc. 4-SMD, No Lead XTAL OSC XO 32.0000MHZ HCMOS SMD
