Jauch Quartz O 25,0-JO32-B-1V3-1-T1-LF
- Part No.:
- O 25,0-JO32-B-1V3-1-T1-LF
- Manufacturer:
- Jauch Quartz
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
O 25,0-JO32-B-1V3-1-T1-LF.pdf
- Description:
- XTAL OSC XO 25.0000MHZ HCMOS SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
O 25,0-JO32-B-1V3-1-T1-LF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Jauch Quartz
- Series:
- JO32
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 25 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS, LVCMOS
- Voltage - Supply:
- 1.8V ~ 3.3V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 4mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):
- 0.041" (1.05mm)
| Image |  |
 |
 |
 |
 |

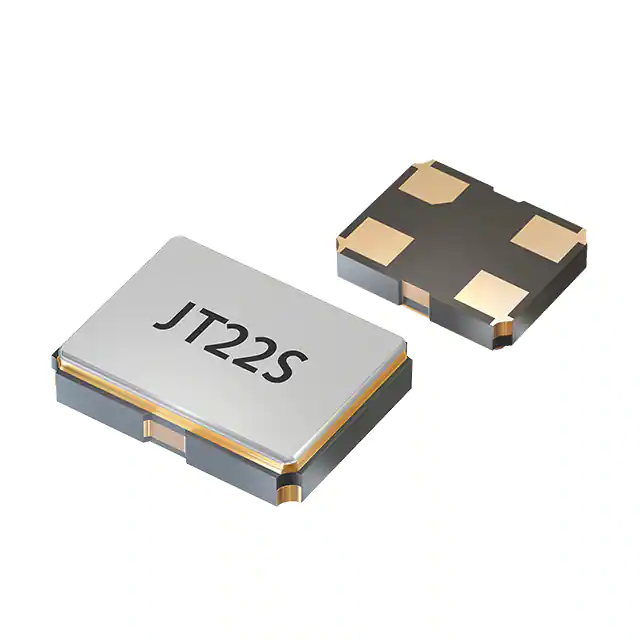

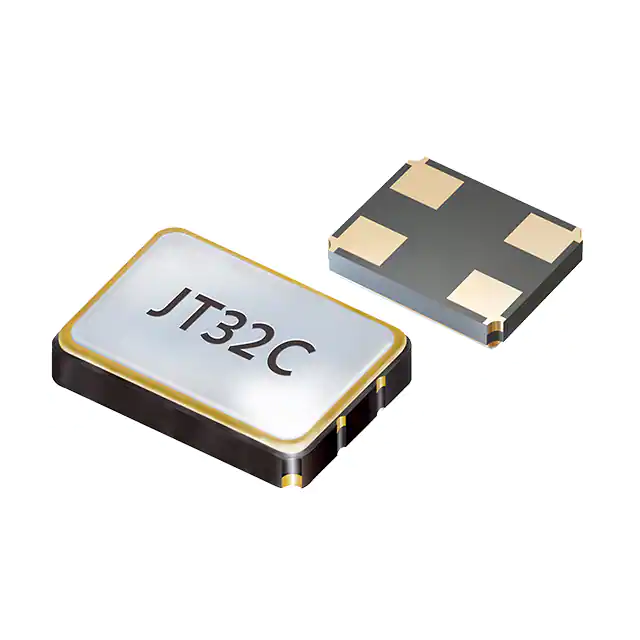

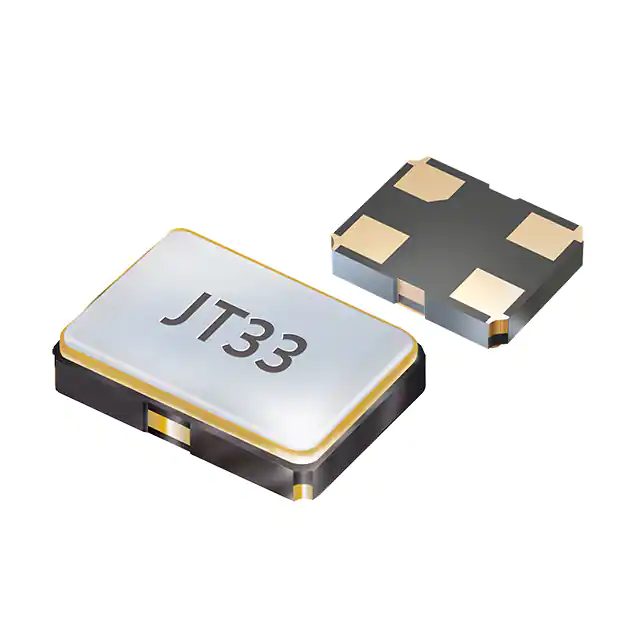

| Part Number | O 25,0-JO32-B-1V3-1-T1-LF | O 25,0-JT32C-A-K-3,3-LF | O 25,0-JT33-B-K-3,3-LF | O 25,0-JT22S-B-K-3,3-LF | O 25,0-JT21ETE-A-K-3,3-LF |
| Manufacturer | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| Series | JO32 | JT32C | JT33 | JT22S | JT21ETE |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | TCXO | TCXO | TCXO | TCXO |
| Frequency | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Function | Enable/Disable | Enable/Disable | - | - | Enable/Disable |
| Output | HCMOS, LVCMOS | HCMOS | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave |
| Voltage - Supply | 1.8V ~ 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±50ppm | ±2.5ppm | ±2ppm | ±2ppm | ±2.5ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 4mA | 5.5mA | 2.5mA | 1.5mA | 1.5mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | - | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.043" (1.10mm) | 0.039" (1.00mm) | 0.035" (0.90mm) | 0.031" (0.80mm) |
