Bourns Inc. RLB0914-681KL
- Part No.:
- RLB0914-681KL
- Manufacturer:
- Bourns Inc.
- Category:
- Fixed Inductors
- Package:
- Radial, Vertical Cylinder
- Datasheet:
-
RLB0914-681KL.pdf
- Description:
- FIXED IND 680UH 490MA 1.6 OHM TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RLB0914-681KL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- RLB
- Package/Case:
- Radial, Vertical Cylinder
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Drum Core, Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 680 µH
- Tolerance:
- ±10%
- Current Rating (Amps):
- 490 mA
- Current - Saturation (Isat):
- 900mA
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 1.6Ohm Max
- Q @ Freq:
- 20 @ 796kHz
- Frequency - Self Resonant:
- 1.6MHz
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 796 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.343" Dia (8.70mm)
- Height - Seated (Max):
- 0.512" (13.00mm)

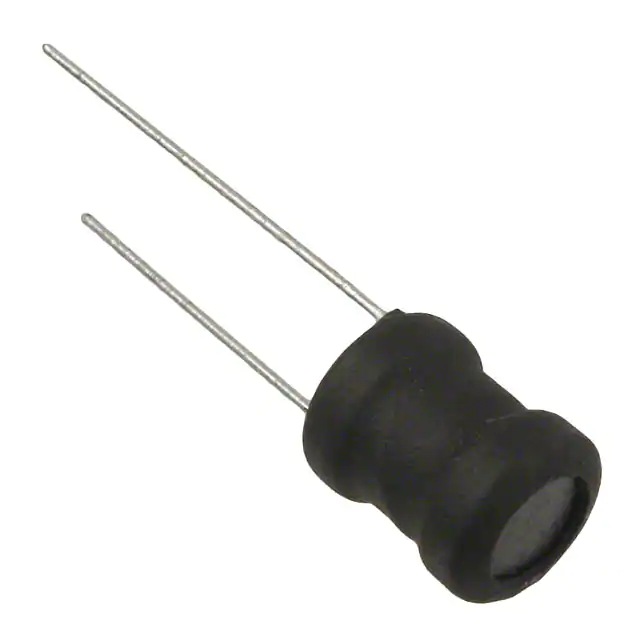

| Image |  |
 |
|
|
|
| Part Number | RLB0914-681KL | RLB0914-101KL | RLB0914-470KL | RLB0914-331KL | RLB0914-680KL |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | RLB | RLB | RLB | RLB | RLB |
| Package/Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 100 µH | 47 µH | 330 µH | 68 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 490 mA | 1.1 A | 1.56 A | 740 mA | 1.33 A |
| Current - Saturation (Isat) | 900mA | 2.1A | 3.2A | 1.25A | 2.7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.6Ohm Max | 280mOhm Max | 140mOhm Max | 760mOhm Max | 210mOhm Max |
| Q @ Freq | 20 @ 796kHz | 30 @ 796kHz | 30 @ 2.52MHz | 20 @ 796kHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 1.6MHz | 3.5MHz | 6MHz | 2MHz | 4.5MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 2.52 MHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
