Jauch Quartz Q 30,0-JXS11-12-10/20-T1-FU-LF

Name: Q 30,0-JXS11-12-10/20-T1-FU-LF
Brand: Jauch Quartz
SKU: Q 30,0-JXS11-12-10/20-T1-FU-LF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: Q 30,0-JXS11-12-10/20-T1-FU-LF

Manufacturer:: Jauch Quartz

Category:: Crystals

Package:: 4-SMD, No Lead

Description:: CRYSTAL 30.0000MHZ 12PF SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Q 30,0-JXS11-12-10/20-T1-FU-LF Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Jauch Quartz

Series:: JXS11

Package/Case:: 4-SMD, No Lead

Packaging:: Tape & Reel (TR)

Product Status:: Active

Type:: MHz Crystal

Frequency:: 30 MHz

Frequency Stability:: ±20ppm

Frequency Tolerance:: ±10ppm

Load Capacitance:: 12pF

ESR (Equivalent Series Resistance):: 80 Ohms

Operating Mode:: Fundamental

Operating Temperature:: -40°C ~ 85°C

Ratings:: -

Mounting Type:: Surface Mount

Supplier Device Package:: -

Size / Dimension:: 0.063" L x 0.047" W (1.60mm x 1.20mm)

Height - Seated (Max):: 0.016" (0.40mm)

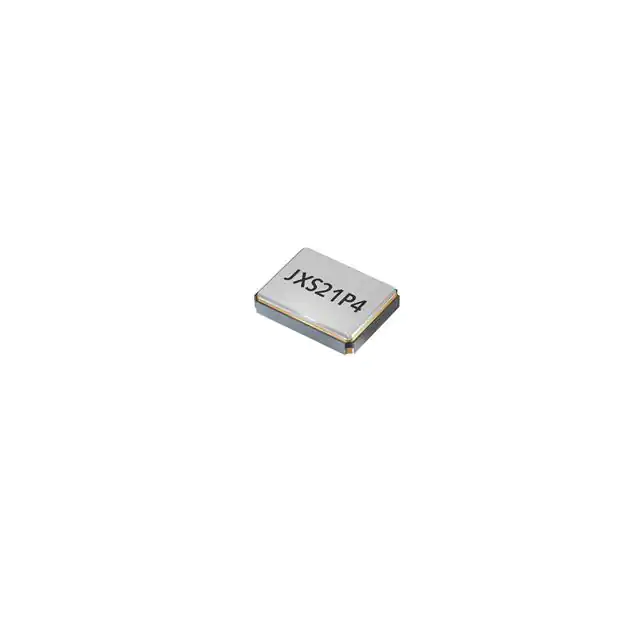

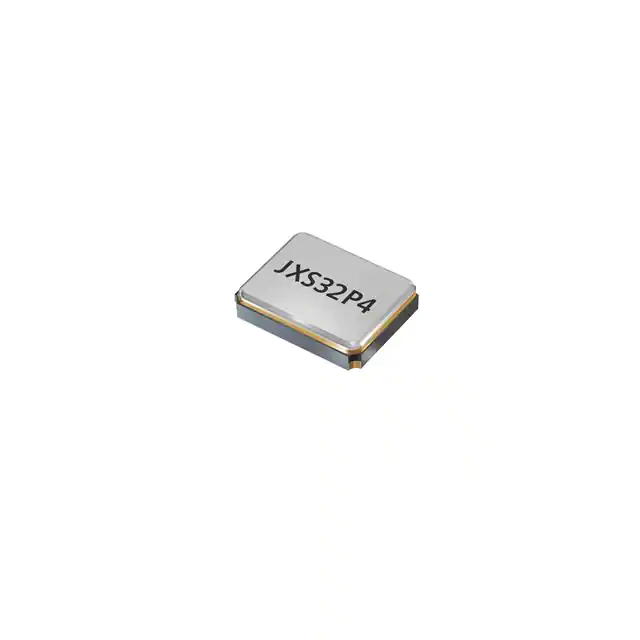

Part Number	Q 30,0-JXS22P4-12-20/20-T1-FU-AEC-LF	Q 30,0-JXS21P4-12-20/20-T1-FU-AEC-LF	Q 30,0-JXS32P4-12-20/20-T1-FU-AEC-LF	Q 30,0-JXS32-10-10/10-FU-WA-LF	Q 30,0-JXS32-12-10/10-FU-WA-LF
Manufacturer	Jauch Quartz	Jauch Quartz	Jauch Quartz	Jauch Quartz	Jauch Quartz
Series	JXS22P4	JXS21P4	JXS32P4	JXS32-WA	JXS32-WA
Package/Case	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead	4-SMD, No Lead
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Type	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal
Frequency	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz
Frequency Stability	±20ppm	±20ppm	±20ppm	±10ppm	±10ppm
Frequency Tolerance	±20ppm	±20ppm	±20ppm	±10ppm	±10ppm
Load Capacitance	12pF	12pF	12pF	10pF	12pF
ESR (Equivalent Series Resistance)	40 Ohms	50 Ohms	45 Ohms	40 Ohms	40 Ohms
Operating Mode	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-20°C ~ 70°C	-20°C ~ 70°C
Ratings	AEC-Q200	AEC-Q200	AEC-Q200	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	-	-	-	-	-
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.079" L x 0.063" W (2.00mm x 1.60mm)	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.024" (0.60mm)	0.024" (0.60mm)	0.028" (0.70mm)	0.028" (0.70mm)	0.028" (0.70mm)
