Bourns Inc. PTV112-4420A-B503
- Part No.:
- PTV112-4420A-B503
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Datasheet:
-
PTV112-4420A-B503.pdf
- Description:
- POT 50K OHM 1/20W CARBON LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PTV112-4420A-B503 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- PTV
- Packaging:
- Bulk
- Product Status:
- Active
- Resistance (Ohms):
- 50k
- Tolerance:
- ±20%
- Power (Watts):
- 0.05W, 1/20W
- Built in Switch:
- None
- Number of Turns:
- 1.0
- Features:
- -
- Taper:
- Linear
- Number of Gangs:
- 2
- Adjustment Type:
- Top Adjustment
- Temperature Coefficient:
- -
- Rotation:
- 300°
- Resistive Material:
- Carbon
- Termination Style:
- PC Pins, Board Locks
- Actuator Type:
- Flatted
- Actuator Length:
- 0.787" (20.00mm)
- Actuator Diameter:
- 0.236" (6.00mm)
- Bushing Thread:
- -
- Mounting Type:
- Through Hole, Snap In

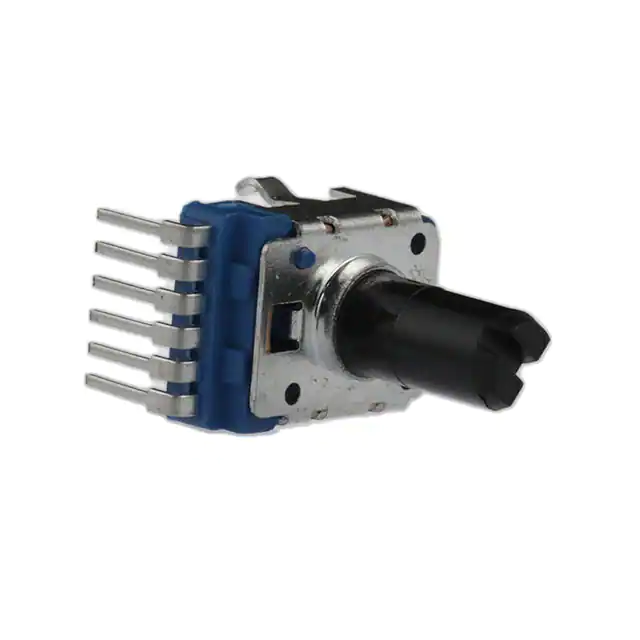

| Image |  |
 |
|
 |
|
| Part Number | PTV112-4420A-B503 | PTV112-4420A-A104 | PTV112-4425A-A203 | PTV112-4420A-A503 | PTV112-4420A-B103 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | PTV | PTV | PTV | PTV | PTV |
| Packaging | Bulk | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 50k | 100k | 20k | 50k | 10k |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | - | - | - | - | - |
| Taper | Linear | Logarithmic | Logarithmic | Logarithmic | Linear |
| Number of Gangs | 2 | 2 | 2 | 2 | 2 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Temperature Coefficient | - | - | - | - | - |
| Rotation | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon |
| Termination Style | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks |
| Actuator Type | Flatted | Flatted | Flatted | Flatted | Flatted |
| Actuator Length | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | - | - | - | - | - |
| Mounting Type | Through Hole, Snap In | Through Hole, Snap In | Through Hole, Snap In | Through Hole, Snap In | Through Hole, Snap In |
