Bourns Inc. PRS11R-415F-S103B1
- Part No.:
- PRS11R-415F-S103B1
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Datasheet:
-
PRS11R-415F-S103B1.pdf
- Description:
- POT 10K OHM 1/20W LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PRS11R-415F-S103B1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- PRS11R
- Packaging:
- Tray
- Product Status:
- Active
- Resistance (Ohms):
- 10k
- Tolerance:
- ±20%
- Power (Watts):
- 0.05W, 1/20W
- Built in Switch:
- Momentary Push, SPST
- Number of Turns:
- 1.0
- Features:
- -
- Taper:
- Linear
- Number of Gangs:
- 1
- Adjustment Type:
- Top Adjustment
- Temperature Coefficient:
- -
- Rotation:
- 300°
- Resistive Material:
- -
- Termination Style:
- PC Pins
- Actuator Type:
- Flatted
- Actuator Length:
- 0.591" (15.00mm)
- Actuator Diameter:
- 0.236" (6.00mm)
- Bushing Thread:
- M7 x 0.75
- Mounting Type:
- Through Hole
| Image |  |
 |
|
 |
 |

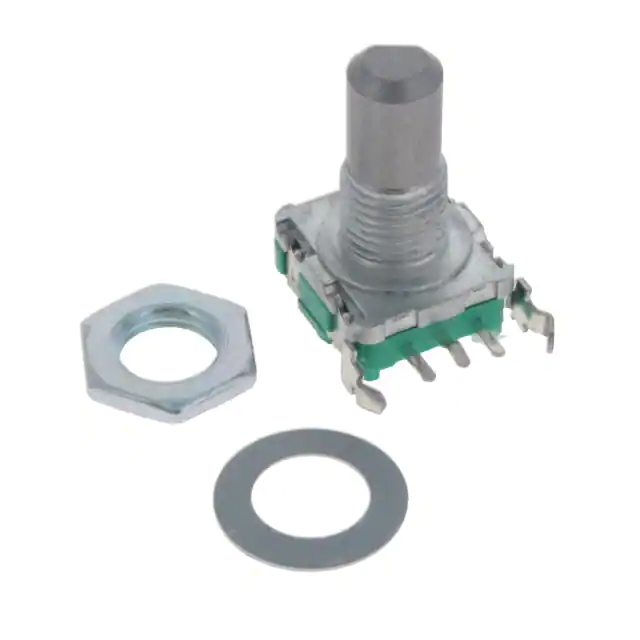

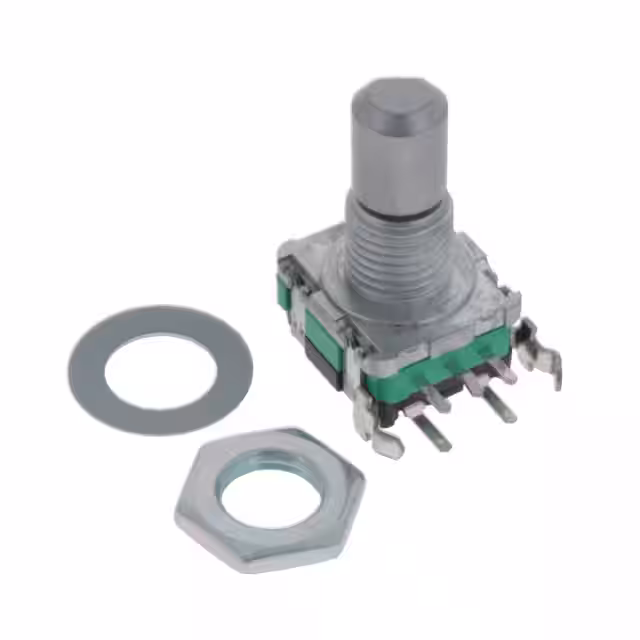

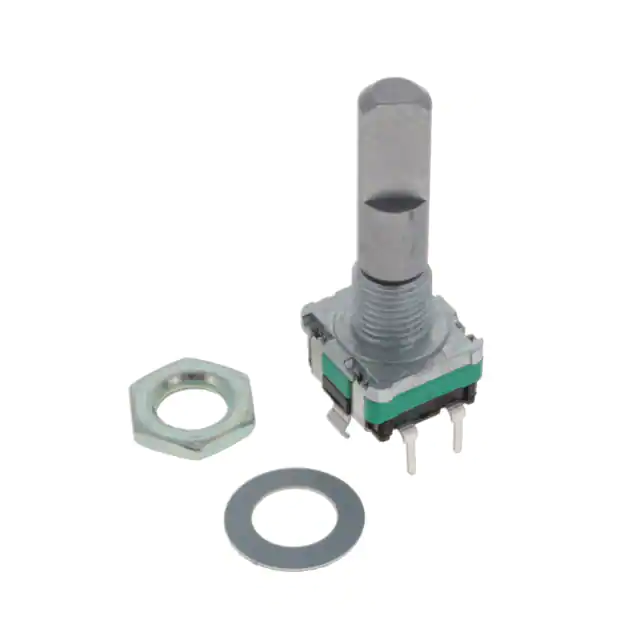

| Part Number | PRS11R-415F-S103B1 | PRS11R-215F-S103B1 | PRS11R-425F-S103B1 | PRS11R-225F-S103B1 | PRS11R-215F-N103B1 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | PRS11R | PRS11R | PRS11R | PRS11R | PRS11R |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 10k | 10k |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Built in Switch | Momentary Push, SPST | Momentary Push, SPST | Momentary Push, SPST | Momentary Push, SPST | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | - | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - | - | - |
| Rotation | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | - | - | - | - | - |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Flatted | Flatted | Flatted | Flatted | Flatted |
| Actuator Length | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
