Kingbright PSA23-11SRWA
- Part No.:
- PSA23-11SRWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 20-DIP (2.366", 60.10mm)
- Datasheet:
-
PSA23-11SRWA.pdf
- Description:
- PSA23-11SRWA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PSA23-11SRWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 20-DIP (2.366", 60.10mm)
- Packaging:
- Bulk
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 2.750" H x 1.882" W x 0.404" D (69.84mm x 47.80mm x 10.25mm)
- Digit/Alpha Size:
- 2.24" (56.80mm)
- Display Type:
- 16-Segment, Alphanumeric
- Common Pin:
- Common Anode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 3.7V
- Current - Test:
- 20mA
- Millicandela Rating:
- 75mcd
- Wavelength - Peak:
- 660nm
- Power Dissipation (Max):
- 300mW

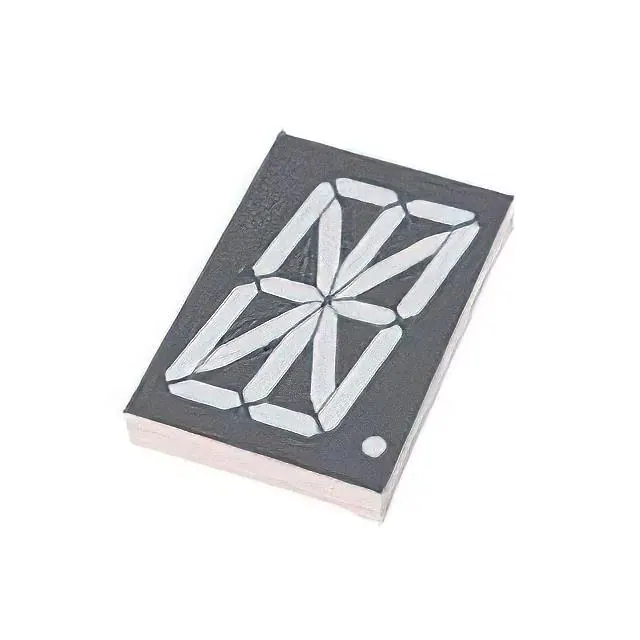

| Image |  |
 |
| Part Number | PSA23-11SURKWA | PSA23-11SRWA |
| Manufacturer | Kingbright | Kingbright |
| Series | - | - |
| Package/Case | 20-DIP (2.366", 60.10mm) | 20-DIP (2.366", 60.10mm) |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Display Format | - | - |
| Number of Characters | 1 | 1 |
| Size / Dimension | 2.750" H x 1.882" W x 0.394" D (69.84mm x 47.80mm x 10.00mm) | 2.750" H x 1.882" W x 0.404" D (69.84mm x 47.80mm x 10.25mm) |
| Digit/Alpha Size | 2.24" (56.80mm) | 2.24" (56.80mm) |
| Display Type | 16-Segment, Alphanumeric | 16-Segment, Alphanumeric |
| Common Pin | Common Anode | Common Anode |
| Color | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V, 3.7V | 3.7V |
| Current - Test | 10mA, 20mA | 20mA |
| Millicandela Rating | 95mcd | 75mcd |
| Wavelength - Peak | 645nm | 660nm |
| Power Dissipation (Max) | 75mW, 150mW, 300mW | 300mW |
