Bivar Inc. PM5R3-BC
- Part No.:
- PM5R3-BC
- Manufacturer:
- Bivar Inc.
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Description:
- INDICATOR LED GREEN/RED PNL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PM5R3-BC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bivar Inc.
- Series:
- PM5R3
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Green, Red
- Lens Color:
- White
- Lens Transparency:
- Diffused
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2.1V Green, 2V Red
- Current:
- 30mA Green, 30mA Red
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.25" (6.35mm)
- Lens Size:
- 5mm, T-1 3/4
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- -
- Wavelength - Peak:
- 568nm Green, 625nm Red
- Viewing Angle:
- 40°
- Termination Style:
- -
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
 |
 |

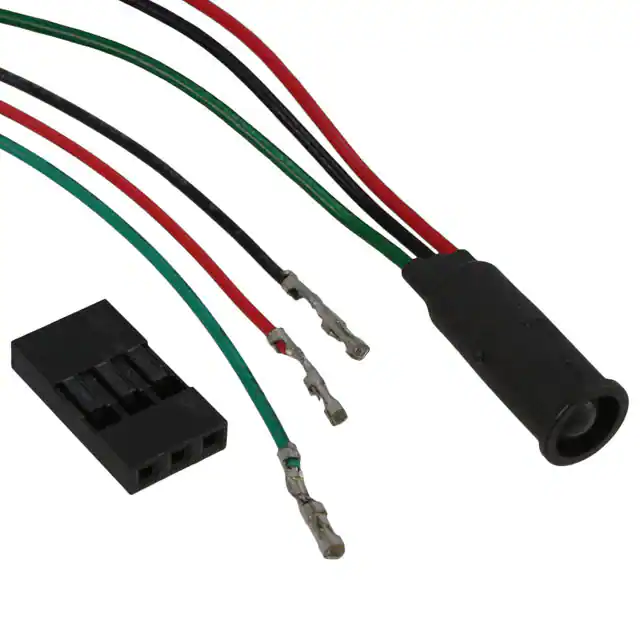

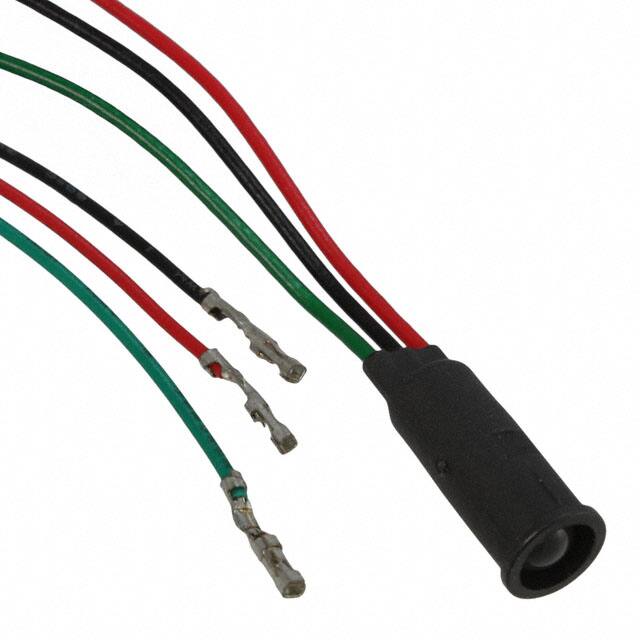

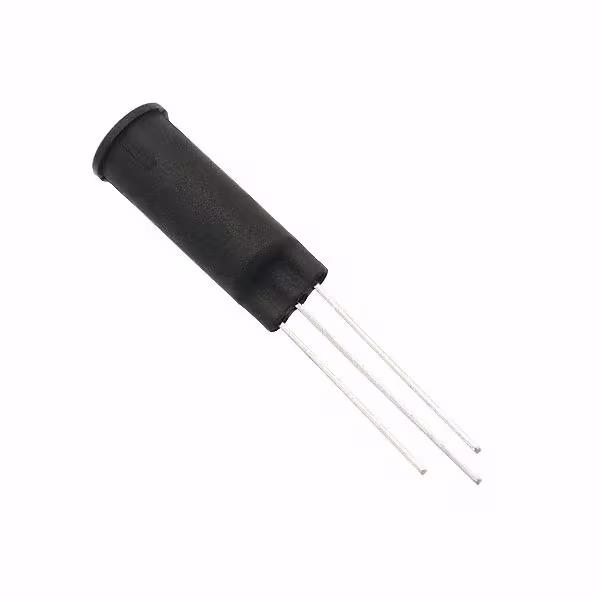

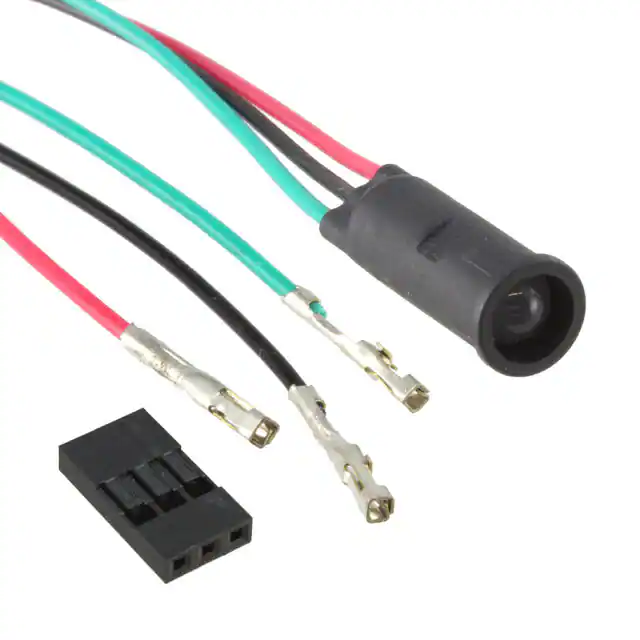

| Part Number | PM5R3-BC | PM5R3-YGW12.0CC | PM5R3-BCW12.0CC | PM5R3-BCW12.0 | PM5R3-YG |
| Manufacturer | Bivar Inc. | Bivar Inc. | Bivar Inc. | Bivar Inc. | Bivar Inc. |
| Series | PM5R3 | PM5R3 | PM5R3 | PM5R3 | PM5R3 |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED |
| Lamp Color | Green, Red | Green, Yellow | Green, Red | Green, Red | Green, Yellow |
| Lens Color | White | White | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2.1V Green, 2V Red | 2.1V Green, 2V Yellow | 2.1V Green, 2V Red | 2.1V Green, 2V Red | 2.1V Green, 2V Yellow |
| Current | 30mA Green, 30mA Red | 30mA Green, 30mA Yellow | 30mA Green, 30mA Red | 30mA Green, 30mA Red | 30mA Green, 30mA Yellow |
| Panel Cutout Shape | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | - | - | - | - | - |
| Wavelength - Peak | 568nm Green, 625nm Red | 568nm Green, 590nm Yellow | 568nm Green, 625nm Red | 568nm Green, 625nm Red | 568nm Green, 590nm Yellow |
| Viewing Angle | 40° | 40° | 40° | 40° | 40° |
| Termination Style | - | Wire Leads - 12" (304.80mm) | Wire Leads - 12" (304.80mm) | Wire Leads - 12" (304.80mm) | - |
| Ingress Protection | - | - | - | - | - |
| Features | - | - | - | - | - |
