Pasternack PEWAN102-10SM
- Part No.:
- PEWAN102-10SM
- Manufacturer:
- Pasternack
- Category:
- RF Antennas
- Package:
- Datasheet:
-
PEWAN102-10SM.pdf
- Description:
- WR102 GAIN HRN 7-11GHZ 10DBI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PEWAN102-10SM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Tape & Box (TB)
- Product Status:
- Active
- RF Family/Standard:
- -
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 9GHz
- Frequency Range:
- 7GHz ~ 11GHz
- Antenna Type:
- Horn
- Number of Bands:
- 1
- VSWR:
- 1.3
- Return Loss:
- -
- Gain:
- 10dBi
- Power - Max:
- -
- Features:
- Cable - 305mm, Cable - 3.048m, Cable - 7.62m
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Waveguide Mount
- Height (Max):
- 1.685" (42.80mm)
- Applications:
- General Purpose
| Image |  |
|
 |
|
 |

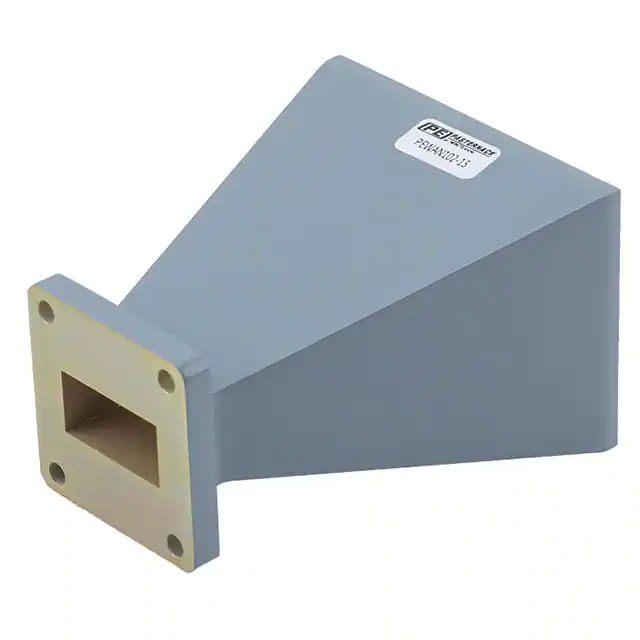

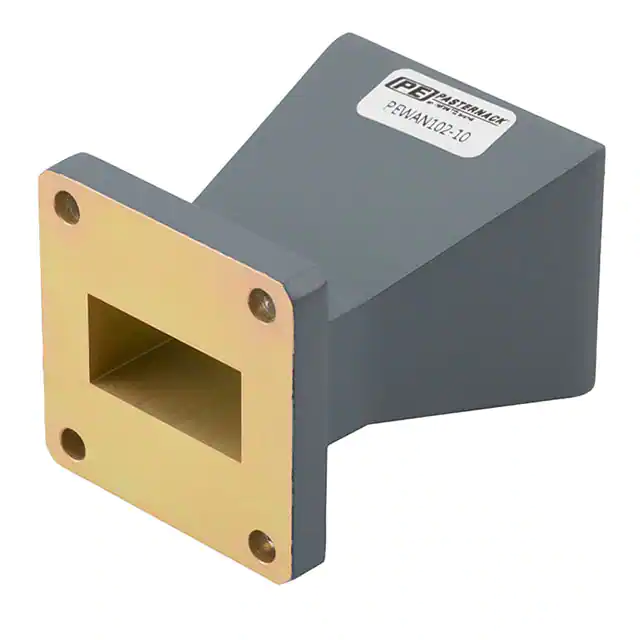

| Part Number | PEWAN1021 | PEWAN1022 | PEWAN102-10 | PEWAN1029 | PEWAN102-15 |
| Manufacturer | Pasternack | Pasternack | Pasternack | Pasternack | Pasternack |
| Series | - | - | - | - | - |
| Packaging | Retail Package | Retail Package | Bulk | Retail Package | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | General ISM | General ISM | Waveguide | General ISM | Waveguide |
| Frequency Group | SHF (f > 4GHz) | Wide Band | C-X Band (4GHz ~ 12GHz) | SHF (f > 4GHz) | C-X Band (4GHz ~ 12GHz) |
| Frequency (Center/Band) | 115GHz | 115GHz | 9GHz | 180GHz | 9GHz |
| Frequency Range | 90GHz ~ 140GHz | 90GHz ~ 140GHz | 7GHz ~ 11GHz | 140GHz ~ 220GHz | 7GHz ~ 11GHz |
| Antenna Type | Horn | Horn | Horn | Horn | Horn |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 1.15 | 1.15 | 1.3 | 1.15 | 1.3 |
| Return Loss | - | - | - | - | - |
| Gain | 10dBi | 15dBi | 10dBi | 10dBi | 15dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | - | Screw-Mount | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Waveguide Mount | Screw Mount | Waveguide Flange Mount | Waveguide Mount | Waveguide Flange Mount |
| Height (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | - |
| Applications | General Purpose | General Purpose | - | General Purpose | - |
