Pasternack PE-W22CP001-10
- Part No.:
- PE-W22CP001-10
- Manufacturer:
- Pasternack
- Category:
- RF Directional Coupler
- Package:
- Module
- Datasheet:
-
PE-W22CP001-10.pdf
- Description:
- WR-22 Waveguide 10 dB Broadwall
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE-W22CP001-10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Retail Package
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 33GHz ~ 50GHz
- Coupling Factor:
- 10dB
- Applications:
- General Purpose
- Insertion Loss:
- 1.2dB
- Power - Max:
- -
- Isolation:
- 30dB
- Return Loss:
- -
- Supplier Device Package:
- -
| Image |  |
 |
|
|
 |

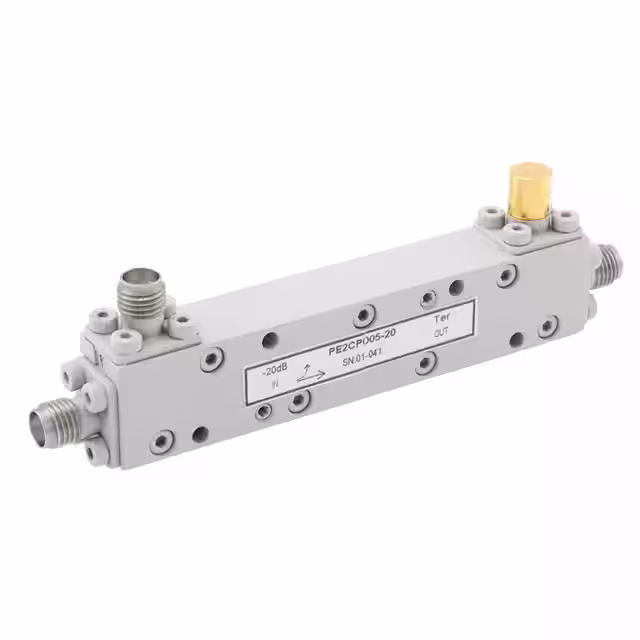

| Part Number | PE2CP005-20 | PE2201-10 | PE2204-10 | PE2210-10 | PE2CP1103 |
| Manufacturer | Pasternack | Pasternack | Pasternack | Pasternack | Pasternack |
| Series | - | - | - | - | - |
| Packaging | Bag | Retail Package | Retail Package | Retail Package | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard |
| Frequency | 1GHz ~ 4GHz | 1GHz ~ 2GHz | 4GHz ~ 8GHz | 2GHz ~ 8GHz | 2GHz ~ 18GHz |
| Coupling Factor | 20 ± 1dB | 10 ± 1.25dB | 10 ± 1.25dB | 10 ± 1dB | 10dB |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | CDMA, GSM, LTE |
| Insertion Loss | 0.4dB | 0.2dB | 0.25dB | 0.35dB | 0.5dB |
| Power - Max | 50W | 50W | 50W | 50W | 50W |
| Isolation | - | - | - | - | - |
| Return Loss | - | - | - | - | - |
| Supplier Device Package | Module | Module | - | Module | Module |
