Pasternack PE2CP005-20
- Part No.:
- PE2CP005-20
- Manufacturer:
- Pasternack
- Category:
- RF Directional Coupler
- Package:
- Module, SMA Connectors
- Datasheet:
-
PE2CP005-20.pdf
- Description:
- CPLR 20DBSMA 1-4GHZ 50W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE2CP005-20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 1GHz ~ 4GHz
- Coupling Factor:
- 20 ± 1dB
- Applications:
- General Purpose
- Insertion Loss:
- 0.4dB
- Power - Max:
- 50W
- Isolation:
- -
- Return Loss:
- -
- Supplier Device Package:
- Module
| Image |  |
 |
 |

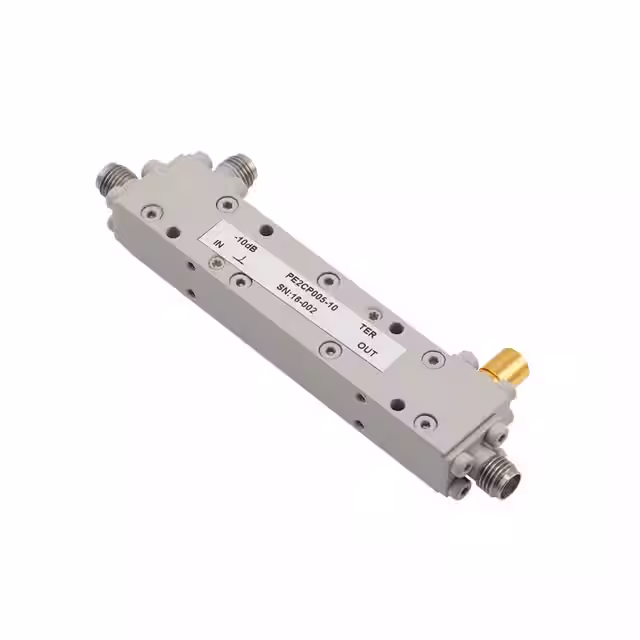

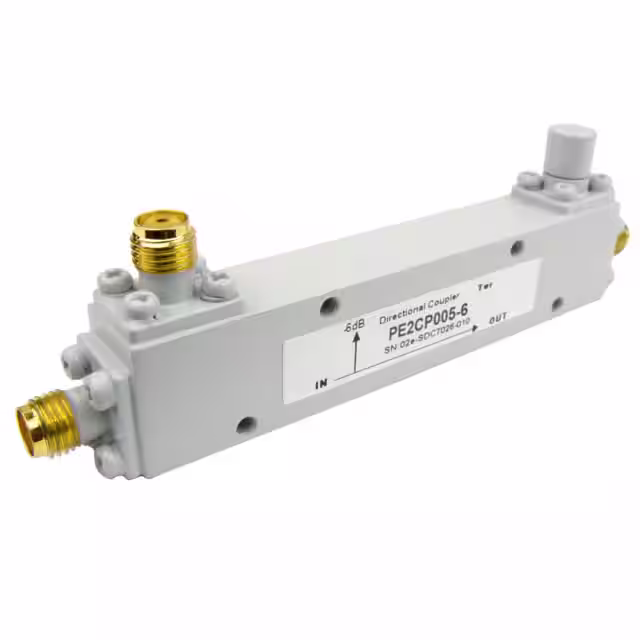

| Part Number | PE2CP005-20 | PE2CP005-6 | PE2CP005-10 |
| Manufacturer | Pasternack | Pasternack | Pasternack |
| Series | - | - | - |
| Packaging | Bag | Bag | Bag |
| Product Status | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard |
| Frequency | 1GHz ~ 4GHz | 1GHz ~ 4GHz | 1GHz ~ 4GHz |
| Coupling Factor | 20 ± 1dB | 6 ± 1dB | 10 ± 1dB |
| Applications | General Purpose | General Purpose | General Purpose |
| Insertion Loss | 0.4dB | 0.5dB | 0.5dB |
| Power - Max | 50W | 50W | 50W |
| Isolation | - | - | - |
| Return Loss | - | - | - |
| Supplier Device Package | Module | Module | Module |
