Pasternack PE2CP1125-20
- Part No.:
- PE2CP1125-20
- Manufacturer:
- Pasternack
- Category:
- RF Directional Coupler
- Package:
- Module
- Datasheet:
-
PE2CP1125-20.pdf
- Description:
- CPLR 20DB2.92MM 8-40GHZ 30W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE2CP1125-20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 8GHz ~ 40GHz
- Coupling Factor:
- 20dB
- Applications:
- 5G, GSM, LTE
- Insertion Loss:
- 0.9dB
- Power - Max:
- 30W
- Isolation:
- -
- Return Loss:
- -
- Supplier Device Package:
- Module
| Image |  |
 |
 |
 |

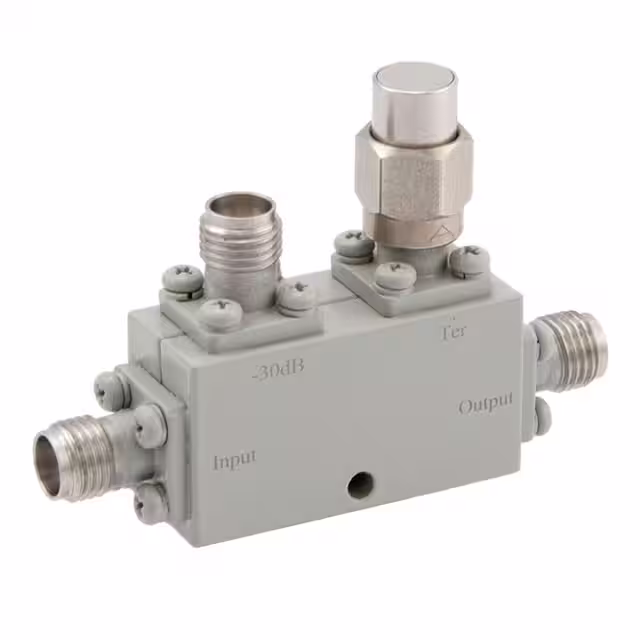

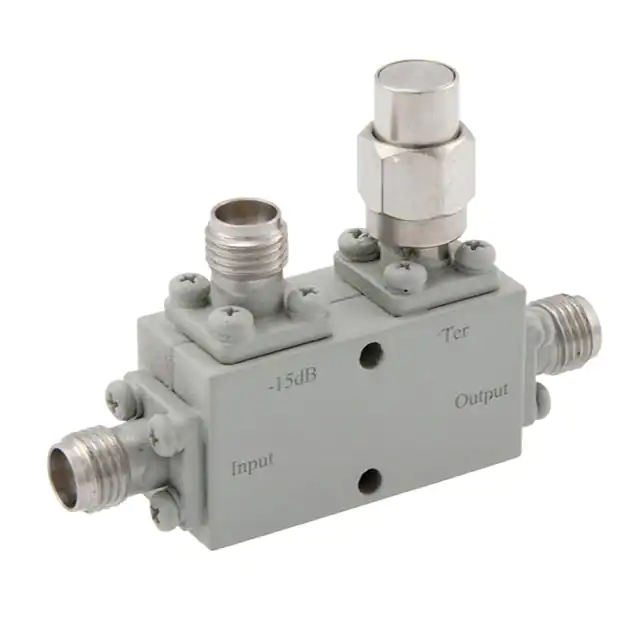

| Part Number | PE2CP1125-15 | PE2CP1125-10 | PE2CP1125-30 | PE2CP1125-20 |
| Manufacturer | Pasternack | Pasternack | Pasternack | Pasternack |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard |
| Frequency | 8GHz ~ 43.5GHz | 8GHz ~ 40GHz | 8GHz ~ 40GHz | 8GHz ~ 40GHz |
| Coupling Factor | 15dB | 10dB | 30dB | 20dB |
| Applications | 5G, GSM, LTE | 5G, GSM, LTE | 5G, GSM, LTE | 5G, GSM, LTE |
| Insertion Loss | 1.1dB | 1.5dB | 1dB | 0.9dB |
| Power - Max | 30W | 30W | 30W | 30W |
| Isolation | - | - | - | - |
| Return Loss | - | - | - | - |
| Supplier Device Package | Module | Module | Module | Module |
