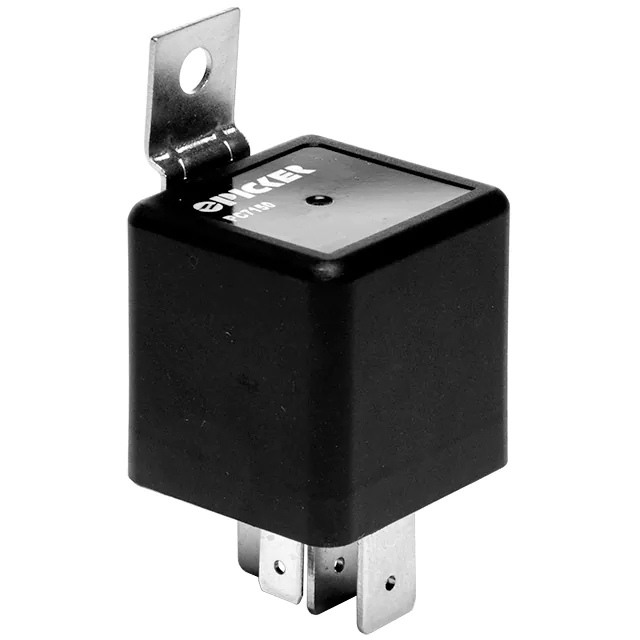

Picker Components PC7150-1A-C2-12C-RN-X

Name: PC7150-1A-C2-12C-RN-X
Brand: Picker Components
SKU: PC7150-1A-C2-12C-RN-X
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: PC7150-1A-C2-12C-RN-X

Manufacturer:: Picker Components

Category:: Automotive Relays

Package:

Datasheet:: PC7150-1A-C2-12C-RN-X.pdf

Description:: RELAY AUTOMOTIVE SPST 150A 12V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PC7150-1A-C2-12C-RN-X Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Picker Components

Series:: -

Packaging:: Bag

Product Status:: Active

Coil Type:: Non Latching

Coil Current:: 258 mA

Coil Voltage:: 12VDC

Contact Form:: SPST-NO (1 Form A)

Contact Rating (Current):: 150 A

Switching Voltage:: 75VDC - Max

Must Operate Voltage:: 7.8 VDC

Must Release Voltage:: 1.2 VDC

Operate Time:: 7 ms

Release Time:: 2 ms

Features:: Resistor

Mounting Type:: Chassis Mount

Termination Style:: Quick Connect - Multiple Sizes

Operating Temperature:: -40°C ~ 125°C

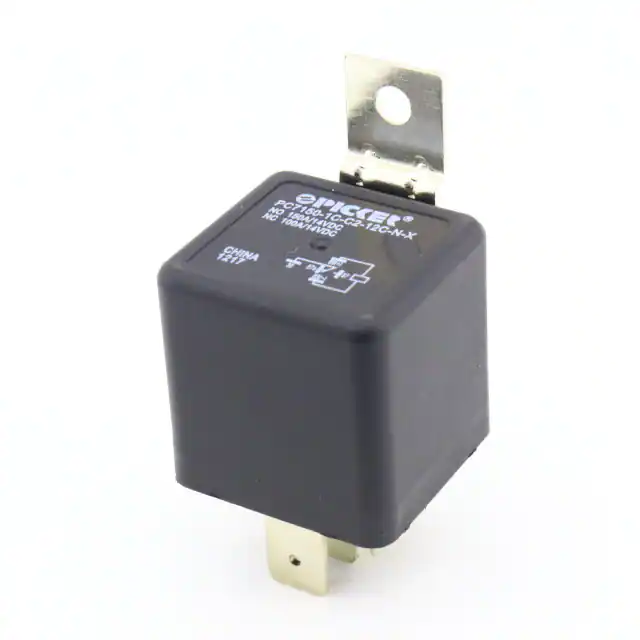

Part Number	PC7150-1A-C2-12C-RN-X	PC7150-1C-C2-12C-N-X	PC7150-1A-C2-24C-RN-X
Manufacturer	Picker Components	Picker Components	Picker Components
Series	-	-	-
Packaging	Bag	Bag	Bag
Product Status	Active	Active	Active
Coil Type	Non Latching	Non Latching	Non Latching
Coil Current	258 mA	240 mA	132 mA
Coil Voltage	12VDC	12VDC	24VDC
Contact Form	SPST-NO (1 Form A)	SPDT (1 Form C)	SPST-NO (1 Form A)
Contact Rating (Current)	150 A	150 A	75 A
Switching Voltage	75VDC - Max	75VDC - Max	75VDC - Max
Must Operate Voltage	7.8 VDC	7.8 VDC	15.6 VDC
Must Release Voltage	1.2 VDC	1.2 VDC	2.4 VDC
Operate Time	7 ms	7 ms	7 ms
Release Time	2 ms	2 ms	2 ms
Features	Resistor	-	Resistor
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount
Termination Style	Quick Connect - Multiple Sizes	Quick Connect - Multiple Sizes	Quick Connect - Multiple Sizes
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
