Picker Components PC537-1C-12S-X
- Part No.:
- PC537-1C-12S-X
- Manufacturer:
- Picker Components
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
PC537-1C-12S-X.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 30A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PC537-1C-12S-X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Picker Components
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 47.2 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- -
- Switching Voltage:
- 28VDC - Max
- Must Operate Voltage:
- 6.9 VDC
- Must Release Voltage:
- 1.5 VDC
- Operate Time:
- 4 ms
- Release Time:
- 1.5 ms
- Features:
- Sealed - Fully
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 105°C

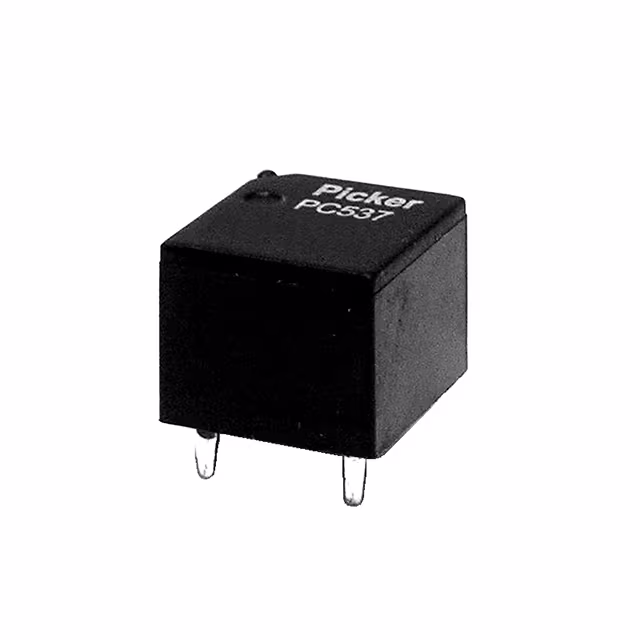

| Image |  |
 |
|
| Part Number | PC537-1C-12S-X | PC537-1A-12S-X | PC537-1C-12H-X |
| Manufacturer | Picker Components | Picker Components | Picker Components |
| Series | - | - | - |
| Packaging | Tube | Tube | Bag |
| Product Status | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching |
| Coil Current | 47.2 mA | 47.2 mA | 47.2 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPST-NO (1 Form A) | SPDT (1 Form C) |
| Contact Rating (Current) | - | - | - |
| Switching Voltage | 28VDC - Max | 28VDC - Max | 28VDC - Max |
| Must Operate Voltage | 6.9 VDC | 6.9 VDC | 6.9 VDC |
| Must Release Voltage | 1.5 VDC | 1.5 VDC | 1.5 VDC |
| Operate Time | 4 ms | 4 ms | 4 ms |
| Release Time | 1.5 ms | 1.5 ms | 1.5 ms |
| Features | Sealed - Fully | Sealed - Fully | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
