Truly OEL9M5001-W-E
- Part No.:
- OEL9M5001-W-E
- Manufacturer:
- Truly
- Category:
- Graphic OLED Display
- Package:
- Description:
- TRULY 2.7" 128×64 PM-OLED Grayscale(W) CPU/SPI TAB(TCP)
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
OEL9M5001-W-E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Truly
- Panel Size:
- 2.7"
- Panel Type:
- PM-OLED
- Resolution:
- 128×64
- Colors:
- Grayscale(W)
- Viewing Area:
- 61.41×30.69
- Outline Size:
- 73(W)×40.24(H) ×2.15(D) mm
- Treatment:
- -
- Brightness:
- -
- Contrast Ratio:
- 10000:1 (Min.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/80/80 (Min.)
- Response Time:
- 0.02/0.02 (Max.)(Tr/Td)
- Best View on:
- Symmetry
- Work Mode:
- -
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Grayscale(W)
- Backlight:
- self
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 100Hz
- Driver IC list:
- TAB Built-in SSD1325T6R1

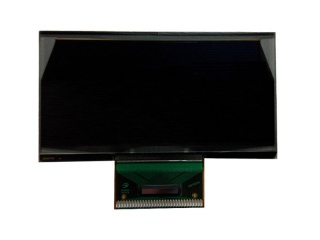

| Image |  |
 |
 |
 |
 |
| Part Number | OEL9M5001-Y-E | OEL9M5001-B-E | OEL9M5001-G-E | OEL9M5001-R-E | OEL9M5001-W-E |
| Manufacturer | Truly | Truly | Truly | Truly | Truly |
| Panel Size | 2.7" | 2.7" | 2.7" | 2.7" | 2.7" |
| Panel Type | PM-OLED | PM-OLED | PM-OLED | PM-OLED | PM-OLED |
| Resolution | 128×64 | 128×64 | 128×64 | 128×64 | 128×64 |
| Colors | Grayscale(Y) | Grayscale(B) | Grayscale(G) | Grayscale(R) | Grayscale(W) |
| Viewing Area | 61.41×30.69 | 61.41×30.69 | 61.41×30.69 | 61.41×30.69 | 61.41×30.69 |
| Outline Size | 73(W)×40.24(H) ×2.15(D) mm | 73(W)×40.24(H) ×2.15(D) mm | 73(W)×40.24(H) ×2.15(D) mm | 73(W)×40.24(H)×2.15(D) | 73(W)×40.24(H) ×2.15(D) mm |
| Treatment | - | - | - | - | |
| Brightness | 80 cd/m² (Typ.) | - | - | - | - |
| Contrast Ratio | 10000:1 (Min.) (TM) | 10000:1 (Min.) (TM) | 10000 : 1 (Min.) (TM) | 10000:1 (Min.) (TM) | |
| View Direction | |||||
| Viewing Angle | 80/80/80/80 (Min.) (Left / Right / Up / Down) | 80/80/80/80 (Min.) (Left / Right / Up / Down) | 80/80/80/80 (Min.) (Left / Right / Up / Down) | 80/80/80/80 (Min.) | 80/80/80/80 (Min.) |
| Response Time | 0.02/0.02 (Max.)(Tr/Td) | 0.02/0.02 (Max.)(Tr/Td) | 0.02/0.02 (Max.)(Tr/Td) ms | 0.02/0.02 (Max.)(Tr/Td) | |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | Symmetry |
| Work Mode | - | - | - | - | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | Grayscale(Y) | Grayscale(B) | Grayscale(G) | Grayscale(R) | Grayscale(W) |
| Backlight | self | self | self | self | |
| Used for | |||||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz |
| Driver IC list | TAB Built-in SSD1325T6R1 | TAB Built-in SSD1325T6R1 | TABBuilt-in SSD1325T6R1 | Built-in TAB SSD1325T6R1 | TAB Built-in SSD1325T6R1 |
