Ignion NN03-320
- Part No.:
- NN03-320
- Manufacturer:
- Ignion
- Category:
- RF Antennas
- Package:
- Datasheet:
-
NN03-320.pdf
- Description:
- DUO MXTEND MULTIBAND ANTENNA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NN03-320 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Ignion
- Series:
- DUO mXTEND™
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- RF Family/Standard:
- Bluetooth, Cellular, Navigation, WiFi
- Frequency Group:
- Ultra Wide Band
- Frequency (Center/Band):
- 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.4Ghz, 4.0GHz, 4.5GHz, 5.0GHz , 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz
- Frequency Range:
- 1.56GHz ~ 10.6GHz
- Antenna Type:
- Chip
- Number of Bands:
- 3
- VSWR:
- 2.5
- Return Loss:
- -
- Gain:
- 2.6dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Solder
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.079" (2.00mm)
- Applications:
- 5G, Beidou, BT, Galileo, GNSS, GPS, UWB
| Image |  |
 |

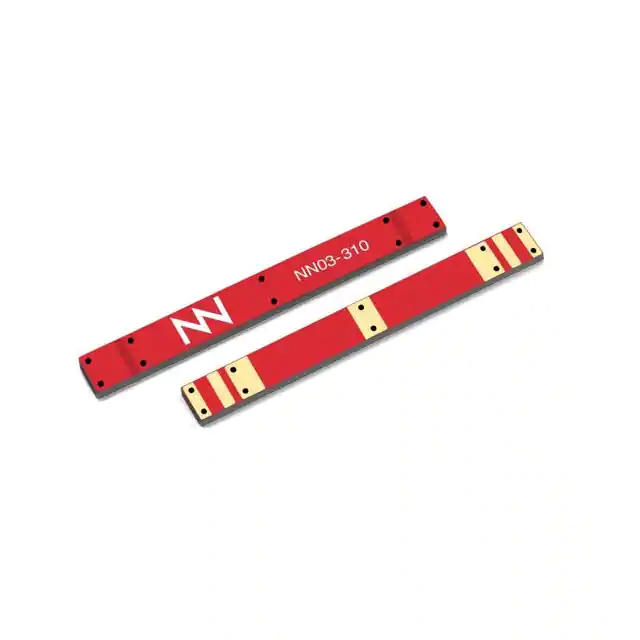

| Part Number | NN03-320 | NN03-310 |
| Manufacturer | Ignion | Ignion |
| Series | DUO mXTEND™ | TRIO mXTEND™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi | Bluetooth, Cellular, Navigation, WiFi |
| Frequency Group | Ultra Wide Band | Ultra Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.4Ghz, 4.0GHz, 4.5GHz, 5.0GHz , 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.8GHz |
| Frequency Range | 1.56GHz ~ 10.6GHz | 698MHz ~ 3.8GHz |
| Antenna Type | Chip | Chip |
| Number of Bands | 3 | 12 |
| VSWR | 2.5 | 3 |
| Return Loss | - | - |
| Gain | 2.6dBi | 2.4dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | Solder | Solder |
| Ingress Protection | - | - |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Height (Max) | 0.079" (2.00mm) | 0.039" (1.00mm) |
| Applications | 5G, Beidou, BT, Galileo, GNSS, GPS, UWB | 2G/3G/4G/5G, Bluetooth, GNSS, ISM, LTE, UWB, Wi-Fi |
