Analog Devices Inc./Maxim Integrated MAX22191AUT+T
- Part No.:
- MAX22191AUT+T
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- SOT-23-6
- Description:
- IC DIGITAL INPUT SOT6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MAX22191AUT+T - Analog Devices Ultra-Low-Power Digital Input Translator
The MAX22191AUT+T is an ultra-low-power industrial Digital Input Translator from Analog Devices. Designed for IEC 61131-2 compliant industrial input applications, it translates 24V field signals into CMOS-compatible logic outputs while operating without a dedicated field-side power supply. Packaged in a compact SOT-23-6 package, the MAX22191AUT+T is ideal for industrial automation, motor control, process control systems, and isolated digital input modules.
Product Overview
The MAX22191AUT+T is a parasitically powered industrial digital input device capable of converting 24V industrial switching signals into standard 3.3V or 5V CMOS-level outputs. The device derives its operating power directly from the field input signal, eliminating the need for an additional field-side power supply and reducing system complexity.
About Analog Devices
Analog Devices, Inc. (ADI) is a leading semiconductor manufacturer specializing in analog, mixed-signal, power management, industrial automation, and interface solutions. Its industrial interface portfolio provides robust and highly integrated products for factory automation, process control, and Industry 4.0 applications.
Key Advantages
Supports industrial Type 1 and Type 3 digital input standards.
Eliminates the need for an external field-side power supply.
Operates with industrial input voltages from -60V to +60V.
Maximum propagation delay of only 250ns.
Directly drives optocouplers and status LEDs.
Minimizes heat generation in industrial I/O modules.
Package & Mechanical Details
Compact SOT-23-6 package suitable for high-density industrial control and automation systems.
- Package: SOT-23-6
- Mounting Type: Surface Mount
- Input Voltage Range: -60V to +60V
- Operating Temperature: -40°C to +125°C
- RoHS Compliant

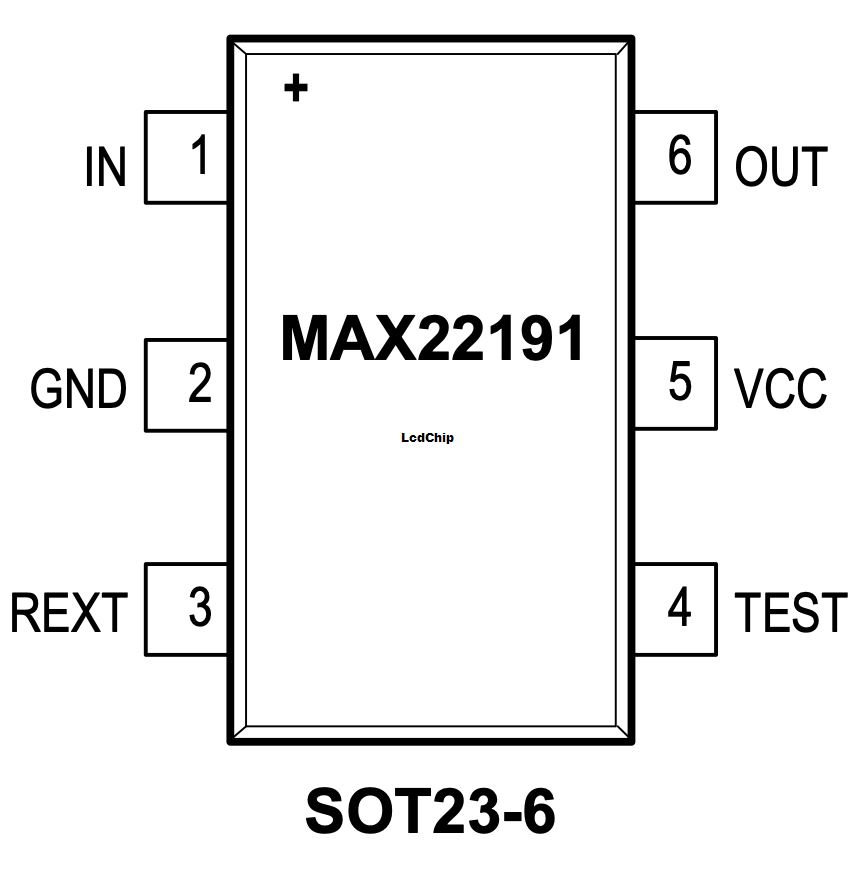

Pin Functions & Terminal Map
The MAX22191AUT+T provides a digital input interface for industrial field signals and supports direct CMOS-level outputs or optocoupler drive capability. Its integrated diagnostic and protection features simplify industrial input module design.
Technical Specifications
| Part Number | MAX22191AUT+T |
|---|---|
| Manufacturer | Analog Devices |
| Product Type | Industrial Digital Input Translator |
| Input Voltage Range | -60V to +60V |
| Logic Output | 3.3V / 5V CMOS Compatible |
| Propagation Delay | 250ns (Max) |
| Input Compliance | IEC 61131-2 Type 1 & Type 3 |
| Supply Method | Parasitically Powered |
| Operating Temperature | -40°C to +125°C |
| Package | SOT-23-6 |
Equivalent & Replacement Guide
When selecting alternatives to the MAX22191AUT+T, engineers should verify IEC compliance, input voltage range, propagation delay, and isolation requirements.
- MAX22190AUT+ – Similar industrial digital input translator for PLC applications.
- MAX22192AUT+ – Related industrial digital input interface device.
Typical Applications
Industrial Automation
Interfaces industrial sensors, switches, and control signals with PLC and factory automation equipment while maintaining IEC 61131-2 compliance.
Process Control Systems
Converts field-level 24V digital signals into logic-level outputs for distributed control systems, process monitoring, and industrial I/O modules.
Quality & Authenticity
The MAX22191AUT+T is an active production device from Analog Devices. Procurement through authorized distribution channels helps ensure component authenticity, traceability, and long-term supply reliability.
Frequently Asked Questions
What is MAX22191AUT+T used for?
MAX22191AUT+T is used for translating industrial 24V digital input signals into CMOS-compatible outputs for PLCs, industrial automation systems, and process control equipment.Does MAX22191AUT+T require an external field-side power supply?
No. The device is parasitically powered from the field input signal, reducing system complexity and power consumption.What industrial standard does MAX22191AUT+T support?
The device is compliant with IEC 61131-2 Type 1 and Type 3 digital input requirements.Can MAX22191AUT+T drive an optocoupler?
Disclaimer
Technical specifications are provided for reference purposes only. Designers should consult the latest official Analog Devices datasheet and application documentation before final circuit design and production deployment.
