MACOM Technology Solutions MADS-002502-1246LP
- Part No.:
- MADS-002502-1246LP
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Diodes
- Package:
- Die
- Description:
- LOW BAR POCKET TAPE SURMOUNT CHI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MADS-002502-1246LP Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- MA4E2502 Surmount™
- Package/Case:
- Die
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- Schottky - Single
- Voltage - Peak Reverse (Max):
- 5V
- Current - Max:
- 20 mA
- Capacitance @ Vr, F:
- 0.12pF @ 0V, 18GHz
- Resistance @ If, F:
- -
- Power Dissipation (Max):
- 50 mW
- Operating Temperature:
- 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- Die
| Image |  |
 |
|
 |
 |

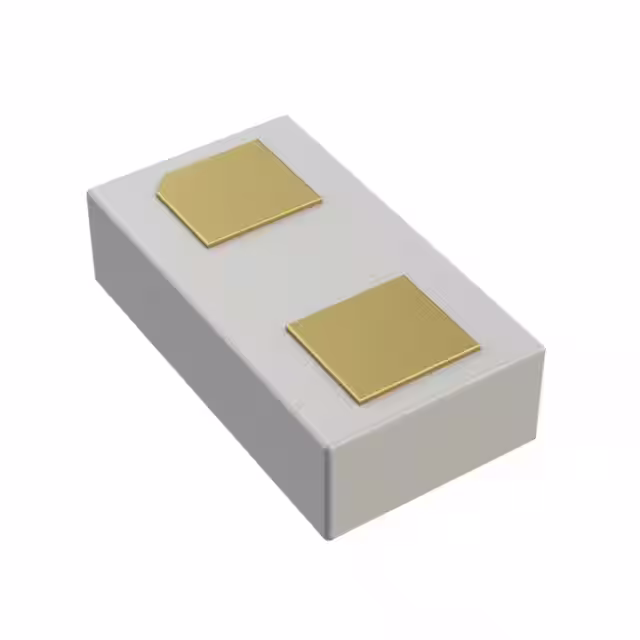

| Part Number | MADS-002502-1246LP | MADS-001340-12790T | MADS-001317-1500AG | MADS-001317-1278HP | MADS-011010-14150T |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | MA4E2502 Surmount™ | MA4E1340 | - | - | - |
| Package/Case | Die | SC-79, SOD-523 | Die | Die | 6-WFDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky - Single | Schottky - Single | Schottky - Single | Schottky - Single | Schottky - 1 Pair Common Cathode |
| Voltage - Peak Reverse (Max) | 5V | 70V | 7V | 7V | 3V |
| Current - Max | 20 mA | 200 mA | - | - | - |
| Capacitance @ Vr, F | 0.12pF @ 0V, 18GHz | 2pF @ 0V, 1MHz | 0.02pF @ 0V, 1MHz | 0.06pF @ 0V, 1MHz | - |
| Resistance @ If, F | - | - | 7Ohm @ 10.5mA, 1MHz | 7Ohm @ 10mA, 1MHz | - |
| Power Dissipation (Max) | 50 mW | 250 mW | - | - | - |
| Operating Temperature | 175°C (TJ) | -55°C ~ 125°C (TJ) | -65°C ~ 125°C | -65°C ~ 125°C | 175°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | Die | SC-79 | Die | Chip | 6-TDFN (1.5x1.2) |
