MACOM Technology Solutions MA4P506-1072T
- Part No.:
- MA4P506-1072T
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Diodes
- Package:
- 2-SMD
- Description:
- RF DIODE PIN 500V 15W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MA4P506-1072T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Package/Case:
- 2-SMD
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- PIN - Single
- Voltage - Peak Reverse (Max):
- 500V
- Current - Max:
- -
- Capacitance @ Vr, F:
- 1pF @ 100V, 1MHz
- Resistance @ If, F:
- 300mOhm @ 100mA, 100MHz
- Power Dissipation (Max):
- 15 W
- Operating Temperature:
- -65°C ~ 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- -
| Image |  |
 |
 |
 |
 |

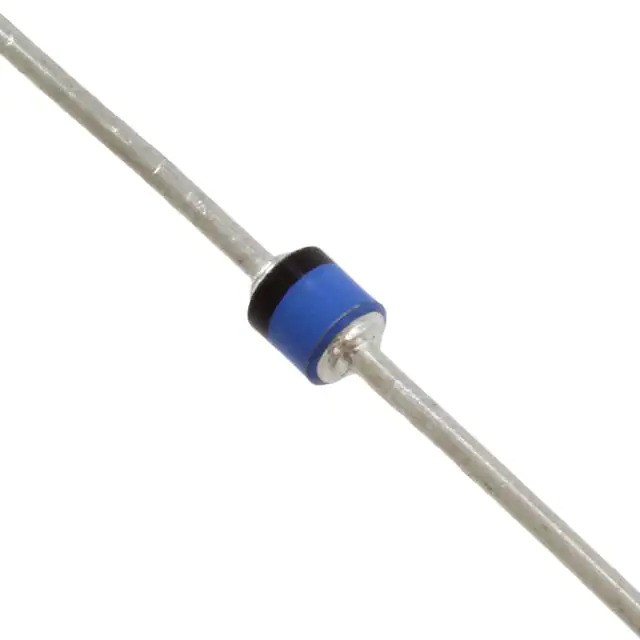

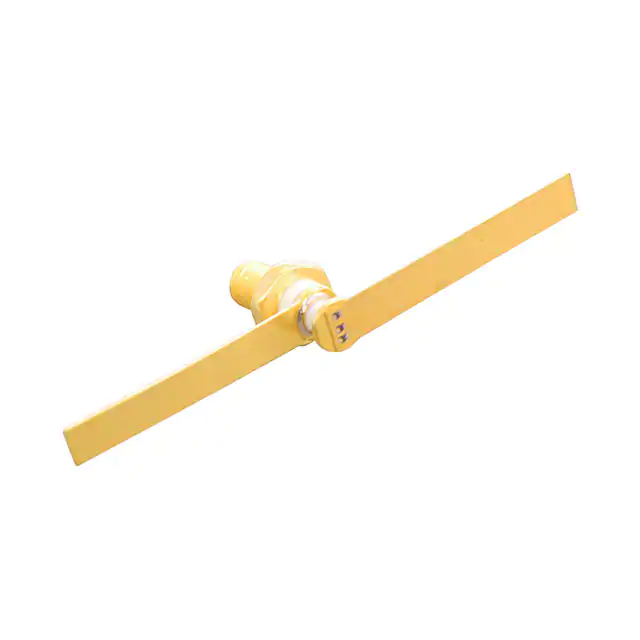

| Part Number | MA4P506-1072T | MA4P506-131 | MA4P506-258 | MA4P506-4 | MA4P506-255 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | - | - | - | - | - |
| Package/Case | 2-SMD | Die | Stud | Axial | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single | PIN - Single |
| Voltage - Peak Reverse (Max) | 500V | 500V | 500V | 500V | 500V |
| Current - Max | - | - | - | - | - |
| Capacitance @ Vr, F | 1pF @ 100V, 1MHz | 0.7pF @ 100V, 1MHz | 1pF @ 100V, 1MHz | 0.85pF @ 100V, 1MHz | 1pF @ 100V, 1MHz |
| Resistance @ If, F | 300mOhm @ 100mA, 100MHz | 300mOhm @ 100mA, 100MHz | 300mOhm @ 100mA, 100MHz | 300mOhm @ 100mA, 100MHz | 300mOhm @ 100mA, 100MHz |
| Power Dissipation (Max) | 15 W | - | 15 W | - | 15 W |
| Operating Temperature | -65°C ~ 175°C (TJ) | 175°C (TJ) | -65°C ~ 175°C | -55°C ~ 175°C | -65°C ~ 175°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | - | Die | - | Axial | ODS-255 |
