MACOM Technology Solutions MA4P504-132
- Part No.:
- MA4P504-132
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Diodes
- Package:
- Die
- Description:
- RF DIODE PIN 500V DIE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MA4P504-132 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Package/Case:
- Die
- Packaging:
- Bulk
- Product Status:
- Active
- Diode Type:
- PIN - Single
- Voltage - Peak Reverse (Max):
- 500V
- Current - Max:
- -
- Capacitance @ Vr, F:
- 0.2pF @ 100V, 1MHz
- Resistance @ If, F:
- 600mOhm @ 100mA, 100MHz
- Power Dissipation (Max):
- -
- Operating Temperature:
- 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- Die
| Image |  |
 |
 |
 |
 |
| Part Number | MA4P504-1072T | MA4P504-132 | MA4P504-144 | MA4P504-30 | MA4P504-255 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | - | - | - | - | - |

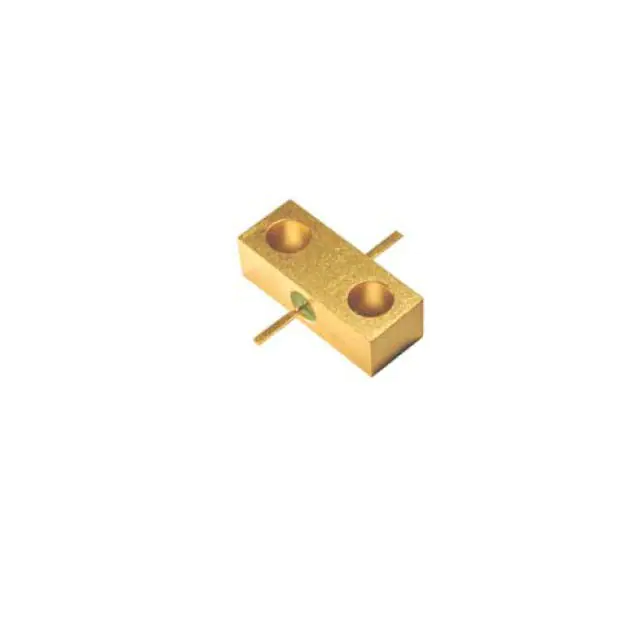

| Package/Case | 2-SMD | Die | Module | Stud | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single | PIN - Single |
| Voltage - Peak Reverse (Max) | 500V | 500V | 500V | 500V | 500V |
| Current - Max | - | - | 100 mA | - | - |
| Capacitance @ Vr, F | 0.5pF @ 100V, 1MHz | 0.2pF @ 100V, 1MHz | - | 0.4pF @ 100V, 1MHz | 0.4pF @ 100V, 1MHz |
| Resistance @ If, F | 600mOhm @ 100mA, 100MHz | 600mOhm @ 100mA, 100MHz | - | 600mOhm @ 100mA, 100MHz | 600mOhm @ 100mA, 100MHz |
| Power Dissipation (Max) | 7.5 W | - | 7.5 W | 7.5 W | 7.5 W |
| Operating Temperature | -65°C ~ 175°C (TJ) | 175°C (TJ) | -65°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | - | Die | - | - | ODS-255 |
