MACOM Technology Solutions MA4L022-134
- Part No.:
- MA4L022-134
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Diodes
- Package:
- Die
- Description:
- RF DIODE PIN 35V CHIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MA4L022-134 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Package/Case:
- Die
- Packaging:
- Bulk
- Product Status:
- Active
- Diode Type:
- PIN - Single
- Voltage - Peak Reverse (Max):
- 35V
- Current - Max:
- 100 mA
- Capacitance @ Vr, F:
- 0.19pF @ 0V, 1MHz
- Resistance @ If, F:
- 2Ohm @ 10mA, 500MHz
- Power Dissipation (Max):
- -
- Operating Temperature:
- -55°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- Chip
| Image |  |
 |
 |
 |

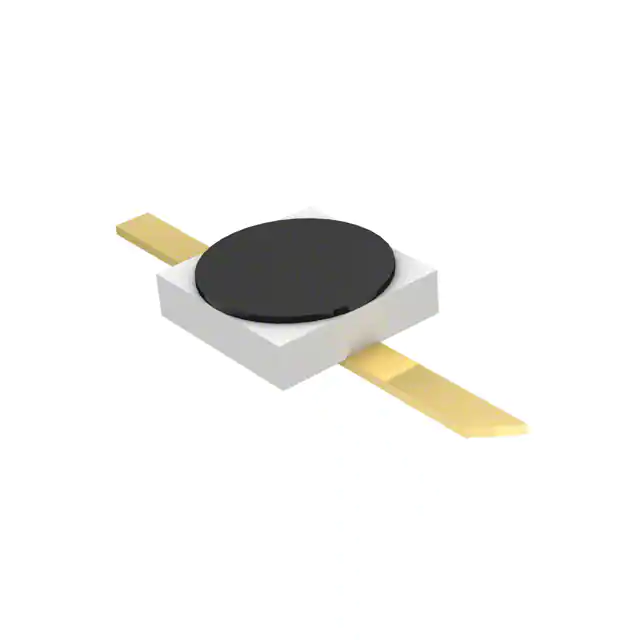

| Part Number | MA4L022-30 | MA4L022-134 | MA4L022-186 | MA4L022-1056 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | MA4L | - | - | MA4L |
| Package/Case | Stud | Die | Die | 2-SMD, No Lead |
| Packaging | Tray | Bulk | Bulk | Tray |
| Product Status | Active | Active | Active | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single |
| Voltage - Peak Reverse (Max) | 35V | 35V | 35V | 35V |
| Current - Max | 100 mA | 100 mA | 100 mA | 100 mA |
| Capacitance @ Vr, F | 0.17pF @ 10V, 1MHz | 0.19pF @ 0V, 1MHz | - | 0.17pF @ 10V, 1MHz |
| Resistance @ If, F | 2Ohm @ 10mA, 500MHz | 2Ohm @ 10mA, 500MHz | 2Ohm @ 10mA, 500MHz | 2Ohm @ 10mA, 500MHz |
| Power Dissipation (Max) | 3 W | - | - | 3 W |
| Operating Temperature | 175°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | 175°C (TJ) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | - | Chip | Chip | ODS-1056 |
