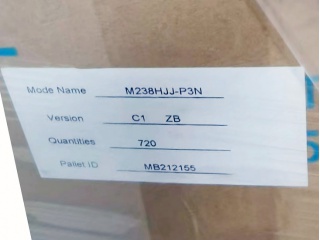

Innolux M238HJJ-P3N

Product attributes

Attribute value

Manufacturer:

Innolux

Panel Size:

23.8"

TNVAIPS:

VA

Resolution:

1920×1080

Viewing Area:

527.04×296.46

Outline Size:

534.04 × 308.16 × 1.28 (H×V×D)

Treatment:

Antiglare (Haze 25%), Hard coating (3H)

Brightness:

0 cd/m²

Contrast Ratio:

3000 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

30 (Typ.)(G to G) ms

Best View on:

Symmetry

Work Mode:

VA, Normally Black, Transmissive

Glass Thickness:

0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)

Transmissivity:

4.8% (Typ.)(with Polarizer)

Color Depth:

16.7M 72% NTSC

Backlight:

No B/L

Mass:

TBD

Touch Screen:

Without

Refresh Rate:

75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

Driver IC list:

Built-in COF 6 source chips

Signal Type:

LVDS (2 ch, 8-bit) , 30 pins Connector
