ams-OSRAM USA INC. LW MVSG-AZBY-IL0-Z486-20-R18-DES
- Part No.:
- LW MVSG-AZBY-IL0-Z486-20-R18-DES
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED Indication - Discrete
- Package:
- 2-SMD, J-Lead
- Description:
- OSRAM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LW MVSG-AZBY-IL0-Z486-20-R18-DES Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- Mini TOPLED®
- Package/Case:
- 2-SMD, J-Lead
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Color:
- White
- Configuration:
- -
- Lens Color:
- -
- Lens Transparency:
- Diffused
- Millicandela Rating:
- 1950mcd
- Lens Style:
- Oval with Flat Top
- Lens Size:
- 1.70mm x 1.55mm
- Voltage - Forward (Vf) (Typ):
- 3.05V
- Current - Test:
- 20mA
- Viewing Angle:
- 120°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- -
- Wavelength - Peak:
- -
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- SMD
- Size / Dimension:
- 2.00mm L x 1.80mm W
| Image |  |
 |
 |
|
|

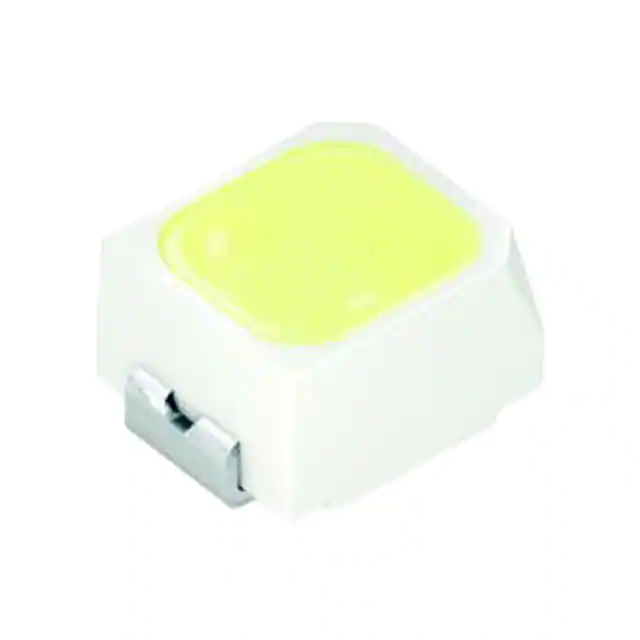

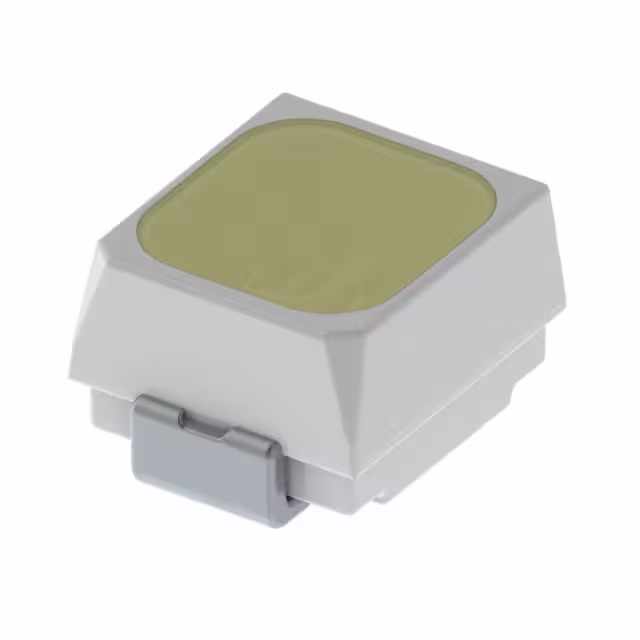

| Part Number | LW MVSG-AZBZ-JKPL-Z486-20-R18-Z | LW MVSG-AYBZ-FK0PN0-Z486-20-R18-Z | LW MVSG-AYBZ-FK0PM0-Z486 | LW MVSG-AZBY-IL0-Z486-20-R18-DES | LW MVSG-BXBZ-ML-1-20-R18-Z-TRW |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | Mini TOPLED® | Mini TOPLED® | Mini TOPLED® | Mini TOPLED® | Mini TOPLED® |
| Package/Case | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT) | Bulk | Bulk |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Color | White | White | White | White | White |
| Configuration | Standard | - | Standard | - | - |
| Lens Color | Yellow | - | Colorless | - | - |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 2150mcd | 2050mcd | - | 1950mcd | 2300mcd |
| Lens Style | Rectangle with Flat Top | Oval with Flat Top | Oval with Flat Top | Oval with Flat Top | Oval with Flat Top |
| Lens Size | 1.55mm x 1.70mm | 1.70mm x 1.55mm | 1.91mm x 1.70mm | 1.70mm x 1.55mm | 1.70mm x 1.55mm |
| Voltage - Forward (Vf) (Typ) | 3.05V | 3.05V | 3.05V | 3.05V | 3.05V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - | - |
| Wavelength - Peak | - | - | - | - | - |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | SMD | SMD | SMD | SMD | SMD |
| Size / Dimension | 2.20mm L x 1.80mm W | 2.00mm L x 1.80mm W | 2.00mm L x 1.80mm W | 2.00mm L x 1.80mm W | 2.00mm L x 1.80mm W |
