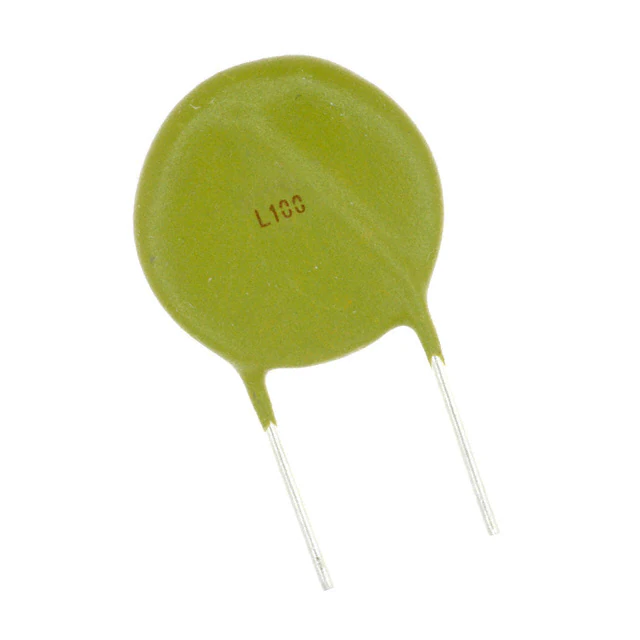

Littelfuse Inc. LVR100S-240

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

Radial, Disc

Series:

PolySwitch®, LVR

Packaging:

Bulk

Product Status:

Active

Type:

Polymeric

Voltage - Max:

240V (265V Int)

Current - Hold (Ih) (Max):

1 A

Current - Trip (It):

2 A

Current - Max:

10 A

Time to Trip:

21 s

Resistance - Initial (Ri) (Min):

218 mOhms

Resistance - Post Trip (R1) (Max):

580 mOhms

Resistance - 25°C (Typ):

-

Operating Temperature:

-20°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Through Hole

Size / Dimension:

0.736" Dia x 0.201" T (18.70mm x 5.10mm)

Height - Seated (Max):

0.961" (24.40mm)

Thickness (Max):

-

Lead Spacing:

0.400" (10.15mm)
