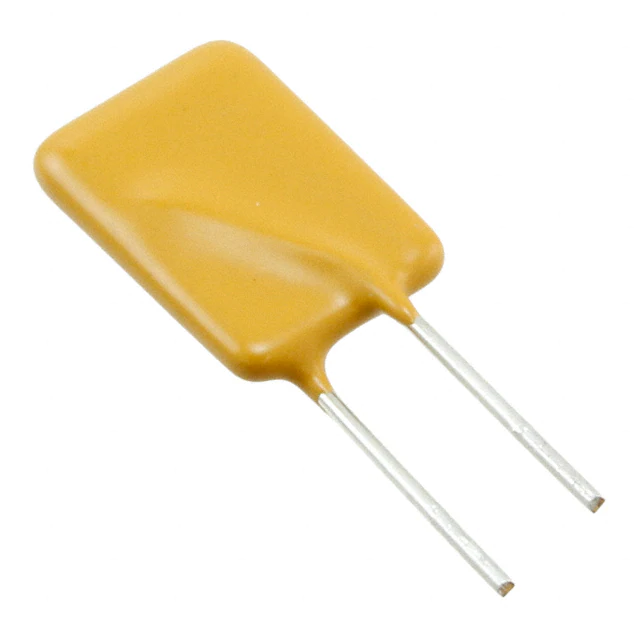

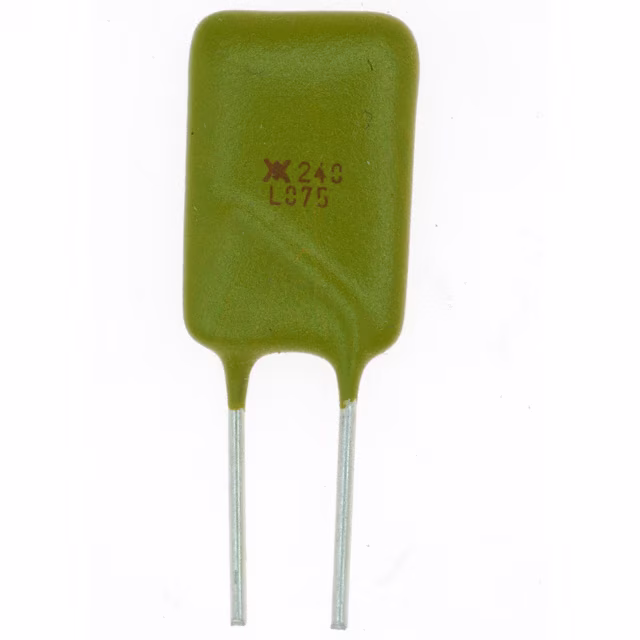

Littelfuse Inc. LVR075S-240-2

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

Radial, Disc

Series:

PolySwitch® LVR

Packaging:

Tape & Reel (TR)

Product Status:

Active

Type:

Polymeric

Voltage - Max:

240V (265V Int)

Current - Hold (Ih) (Max):

750 mA

Current - Trip (It):

1.5 A

Current - Max:

7.5 A

Time to Trip:

18 s

Resistance - Initial (Ri) (Min):

0.316 Ohms

Resistance - Post Trip (R1) (Max):

0.839 Ohms

Resistance - 25°C (Typ):

-

Operating Temperature:

-20°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Through Hole

Size / Dimension:

0.450" L x 0.189" W (11.43mm x 4.80mm)

Height - Seated (Max):

0.921" (23.40mm)

Thickness (Max):

-

Lead Spacing:

0.236" (6.00mm)
